Dakota LED Light Panel

The custom LED light panel is the new innovative light source. It is designed to be ultimately slim, have even illumination, be customizable to your design and can be applied in all types of markets to backlit stone, onyx, quartz and translucent stone.

Custom LED Light Panel

The Custom LED Light Panel is the new innovative light source. In other words, it is designed to be ultimately slim, have even illumination, and be customizable to your design. This new DAKOTA innovative technology and design can be applied in all types of markets to backlit led panels for onyx, quartz, translucent stone. For instance, Architecture & Design, Onyx Translucent Stones, Retail, Signage, and Display & Fixture are some of the main ones. The LED Light Panel DAKOTA is perfect for stone applications. In addition, their ultra-thin design, from ¼” – ¾” thickness makes them accessible in all areas. Besides, they are available in 24VDC systems with a power supply included. Finally, they also come with DC connectors and adaptors and they are available in a variety of color temperatures: 3000 K, 4500 K, 6500 K, RGB, RGBW, CCT 3000K-6000K and custom colors.

Benefits

  • Low Profile Design
  • Dimmable.
  • Low Power Consumption.
  • Up to 70,000 hours of lifespan.
  • 3 Years of Warranty.
  • Made in USA.
  • Easy Installation and Low Maintenance.
  • Custom Lengths and Unique Color Temperatures Available.
Payment

Credit Card: We support several card brands, from large global networks like Visa and Mastercard

  • Visa
  • Mastercard
  • American Express
  • Wire Transfer
  • Checks

PayPal: Shop easily online without having to enter your credit card details on the website.

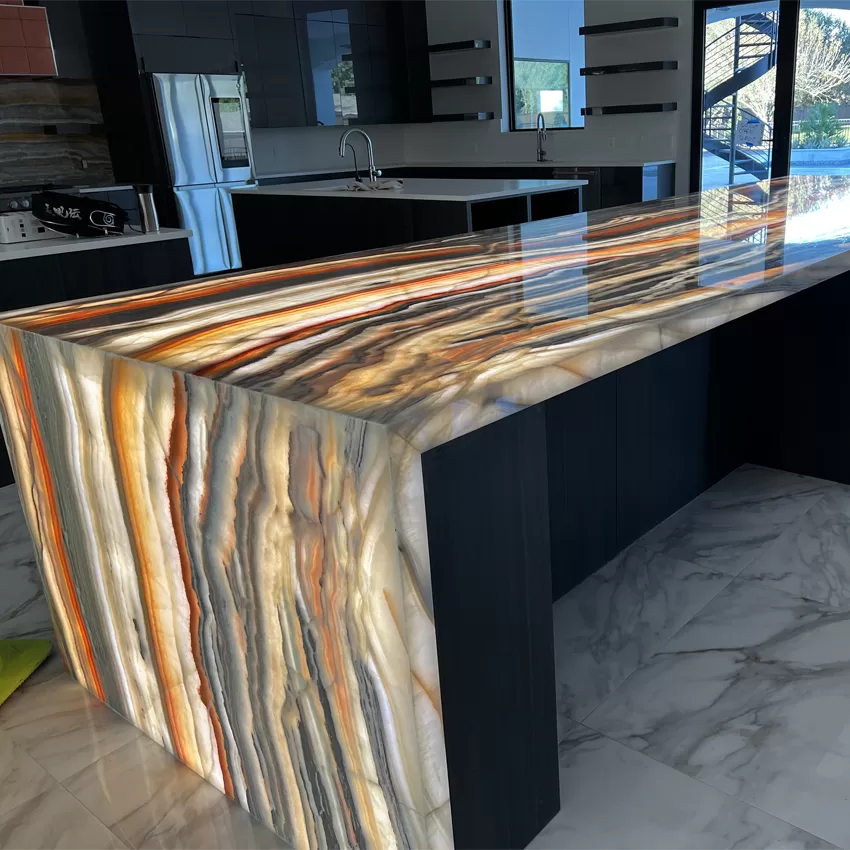

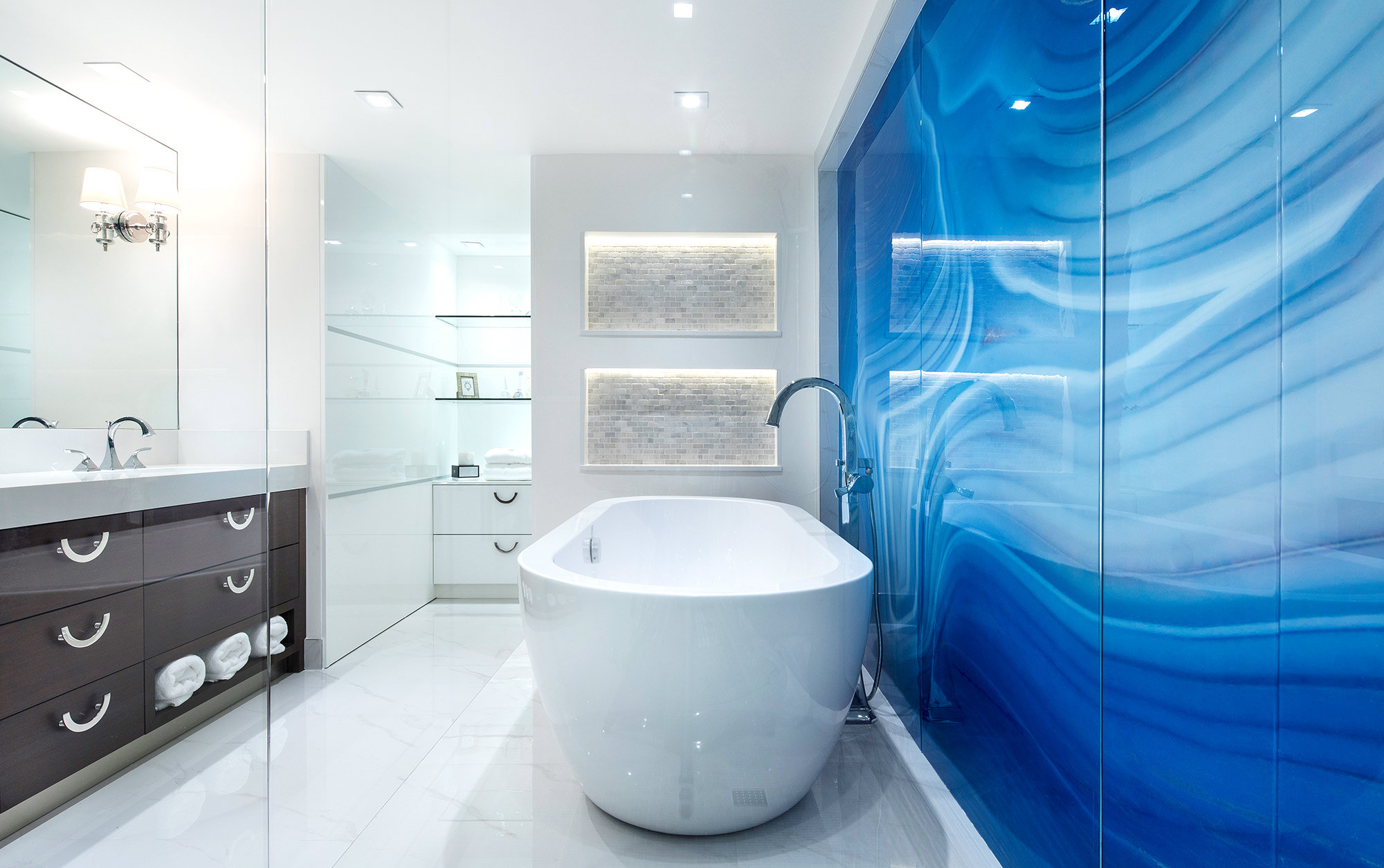

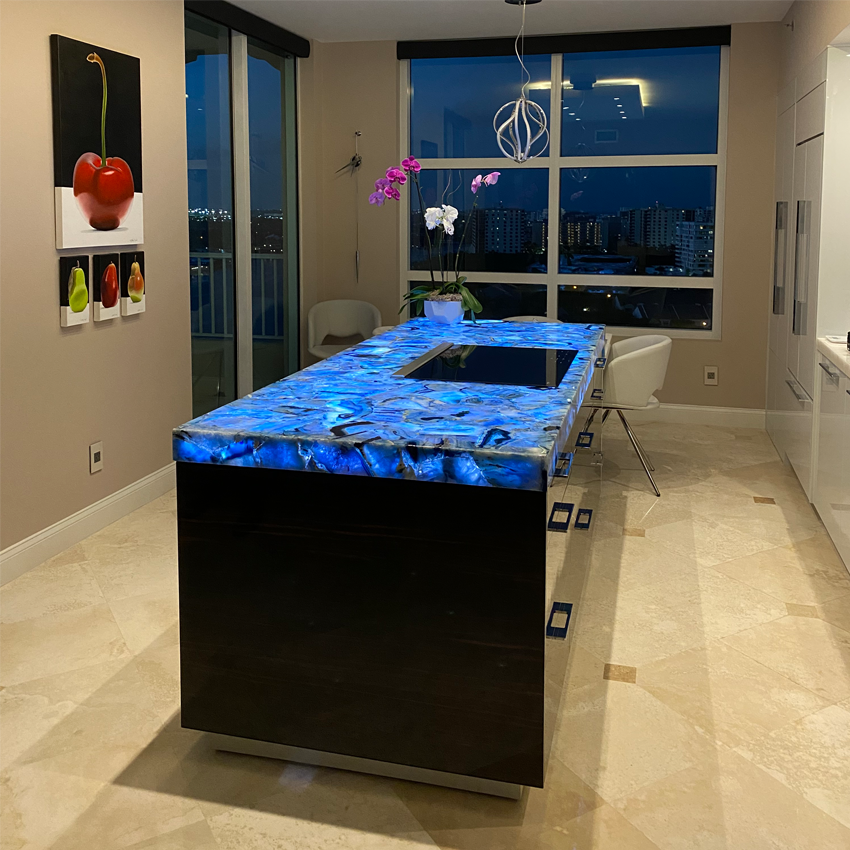

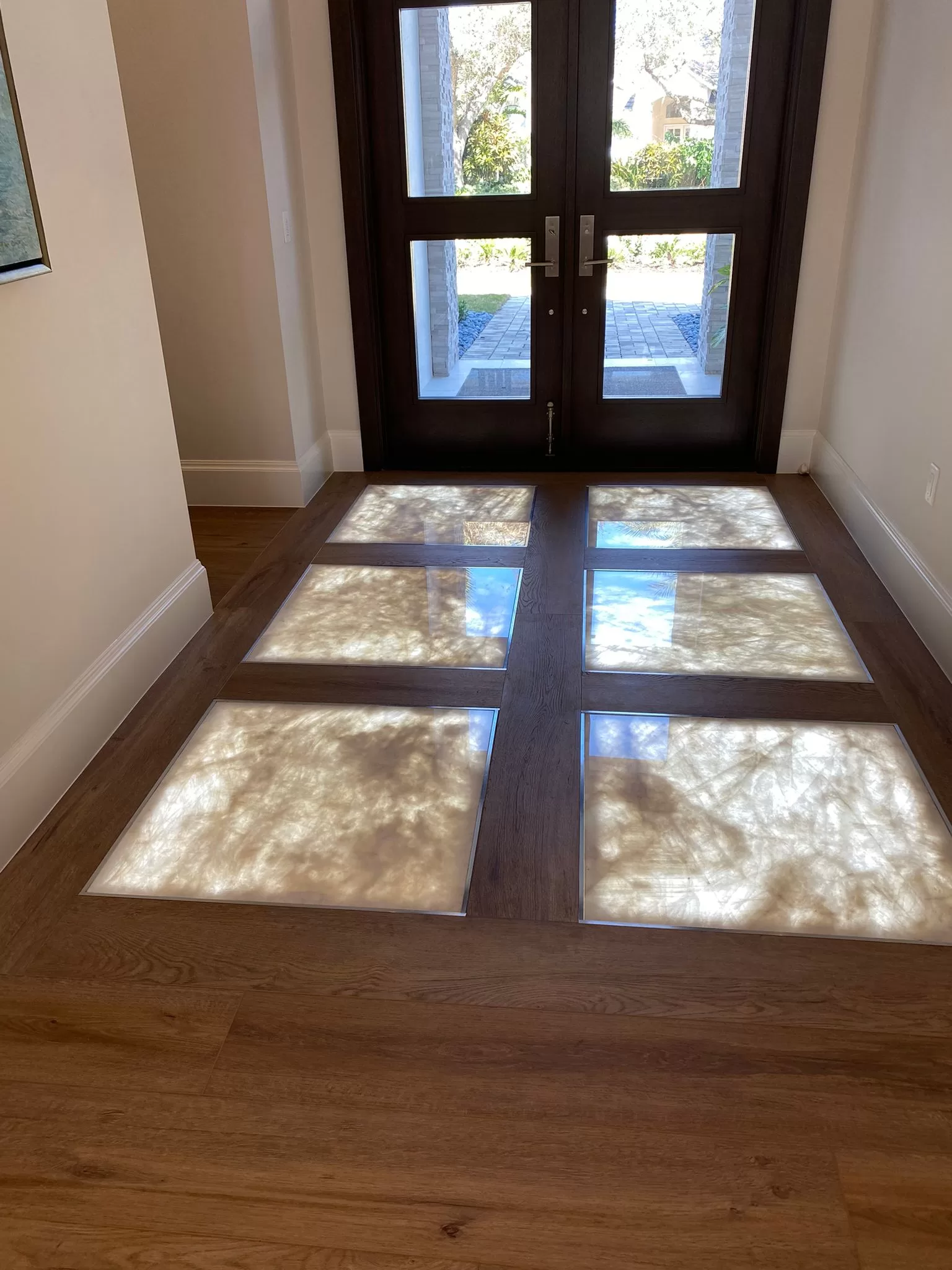

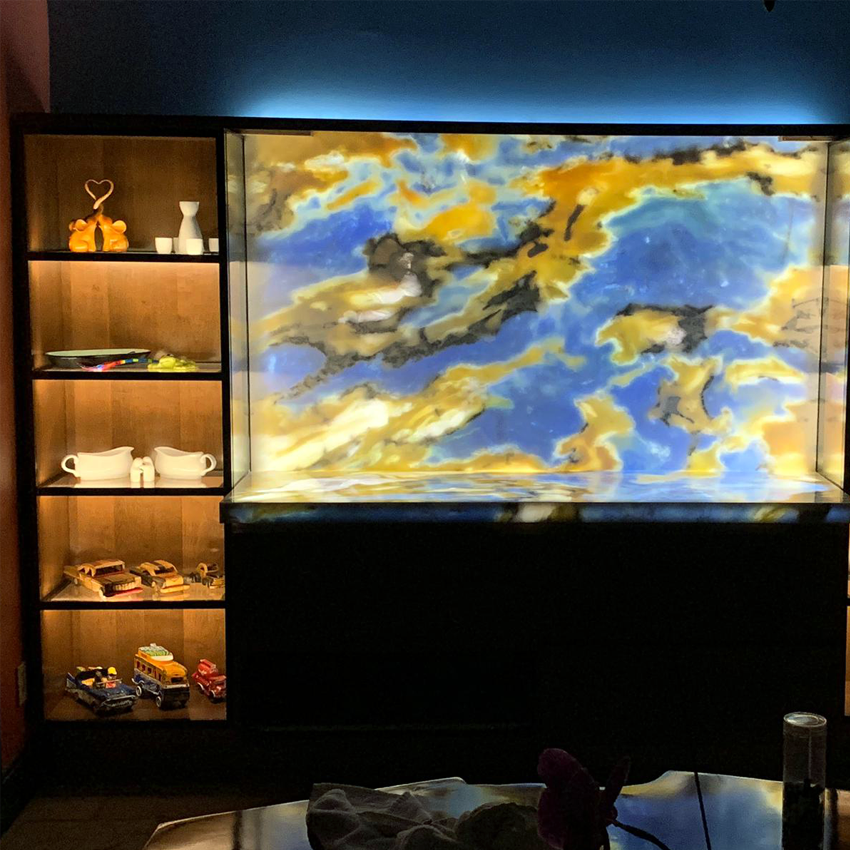

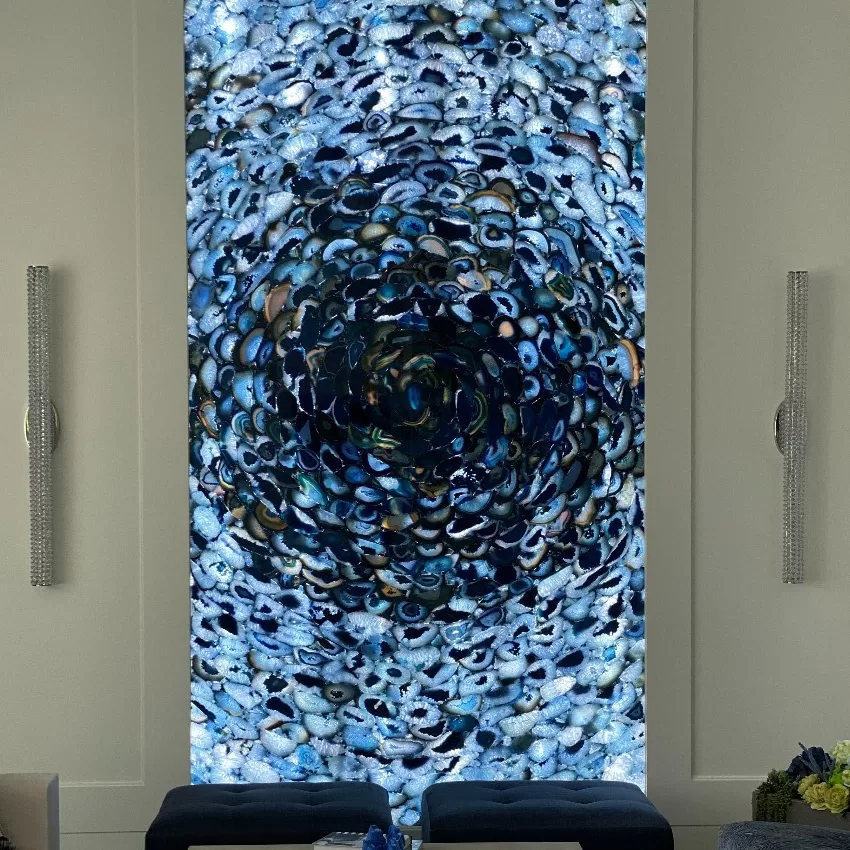

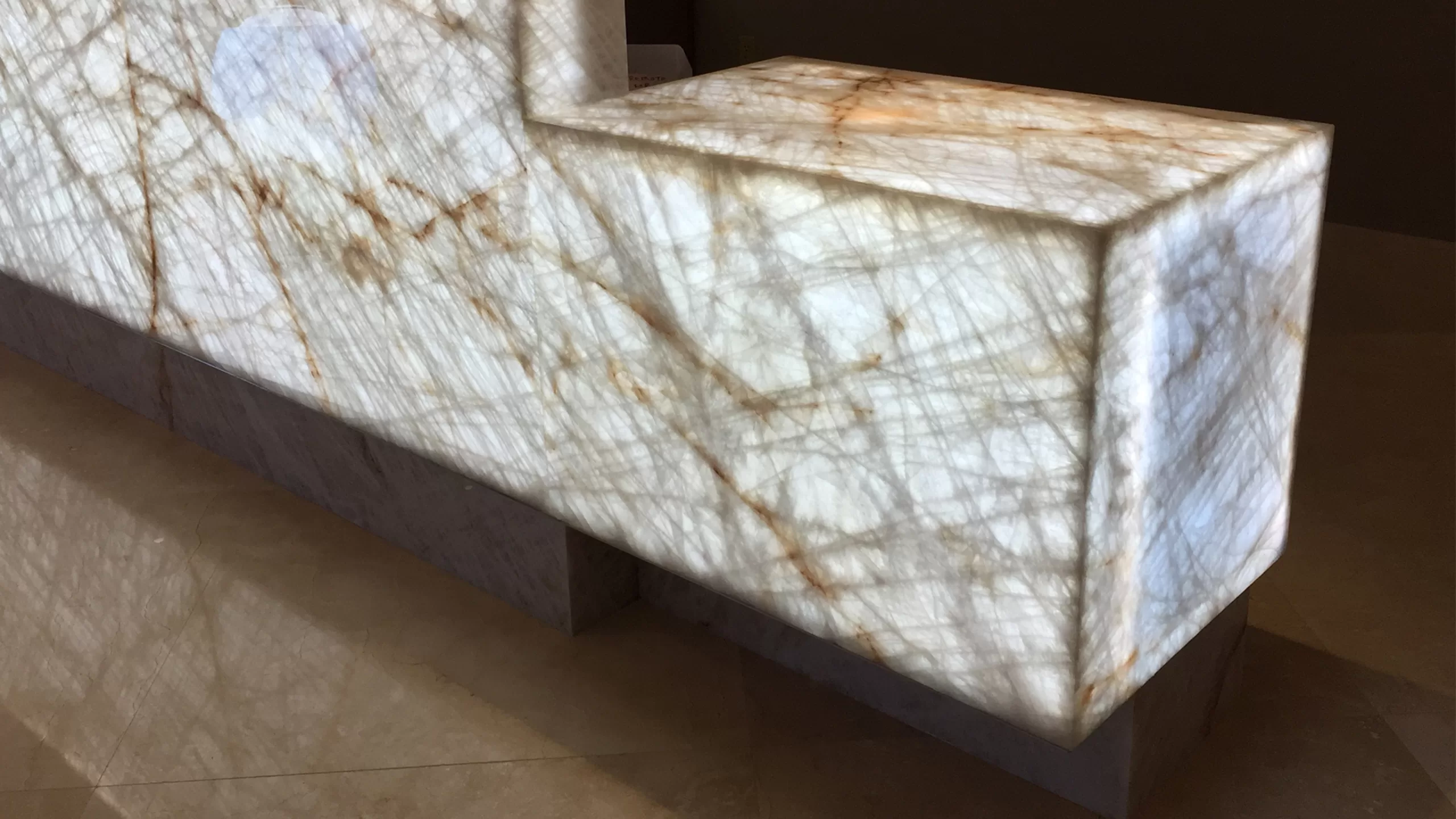

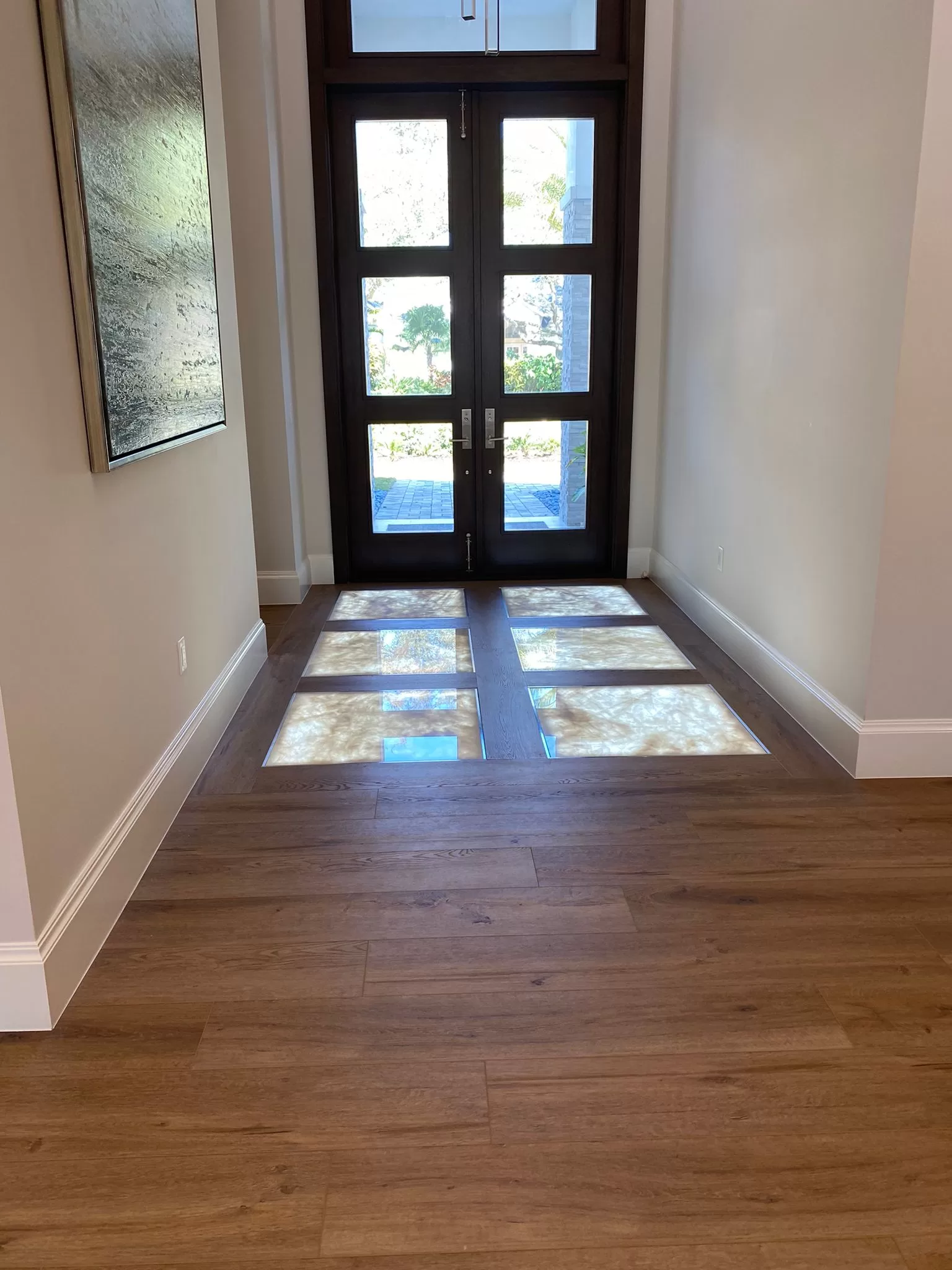

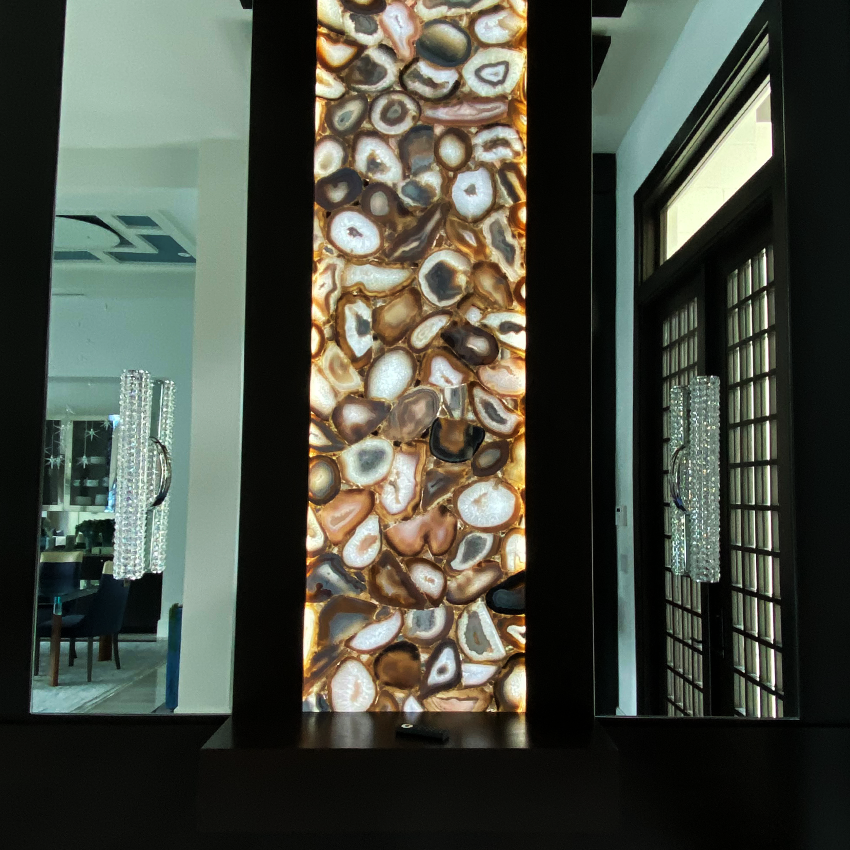

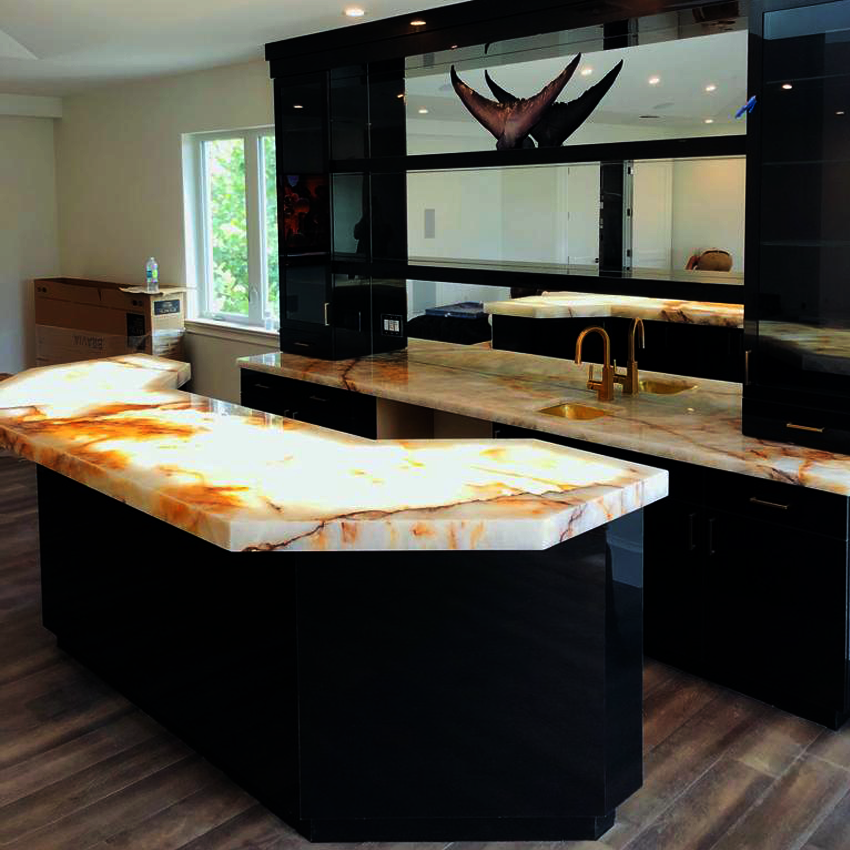

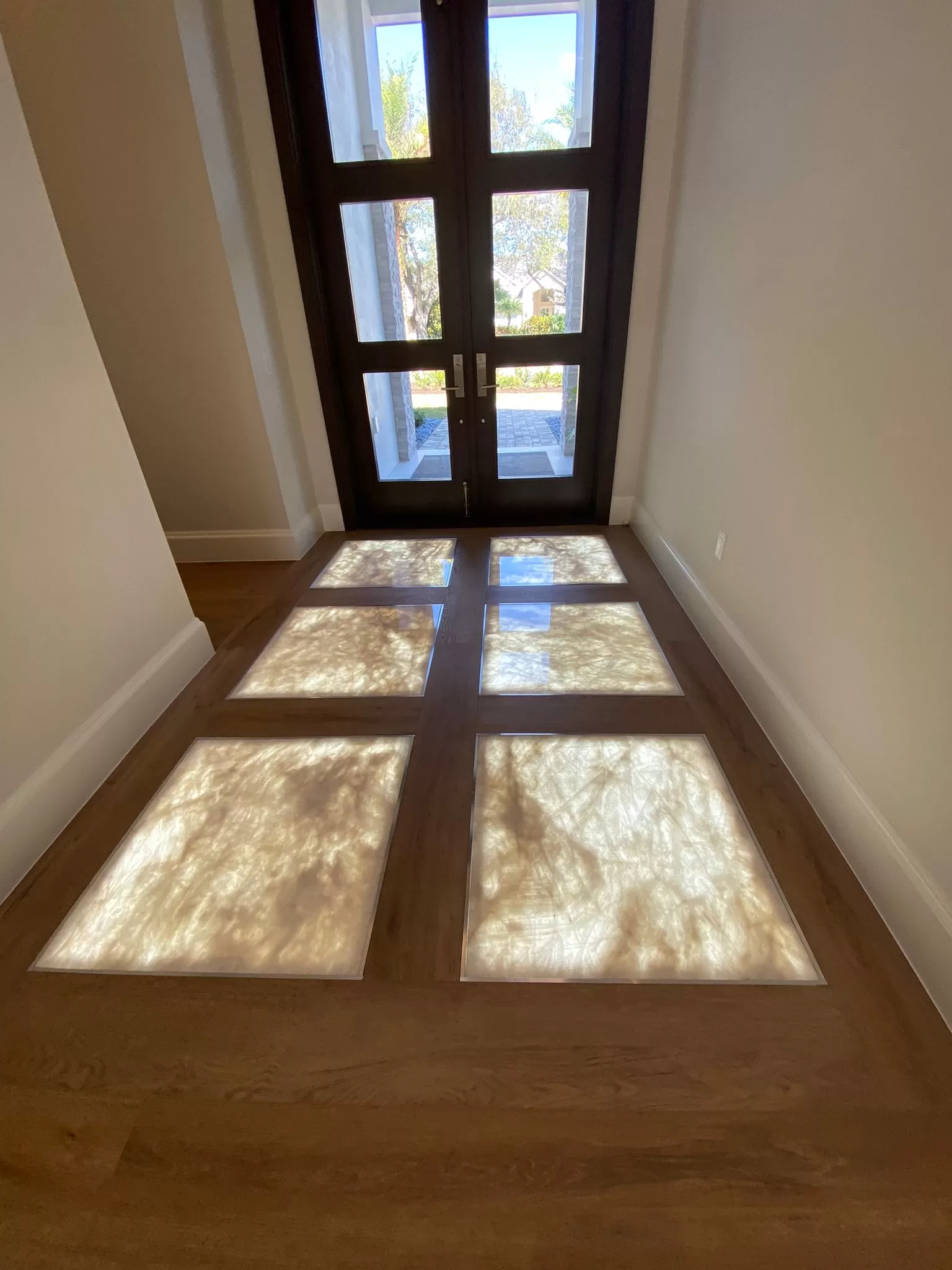

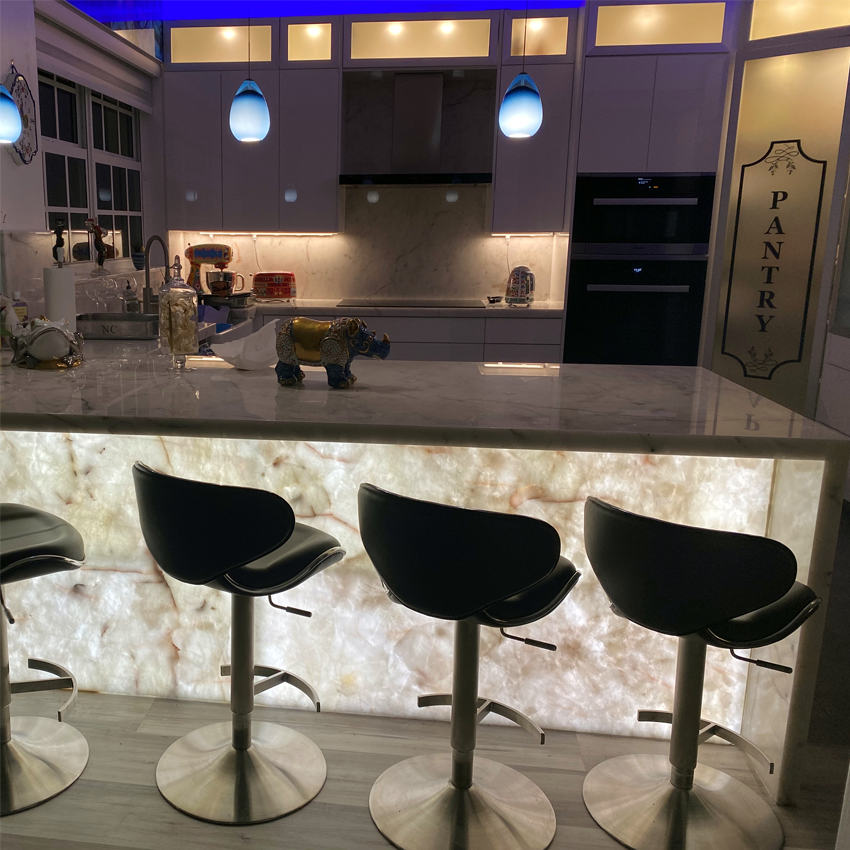

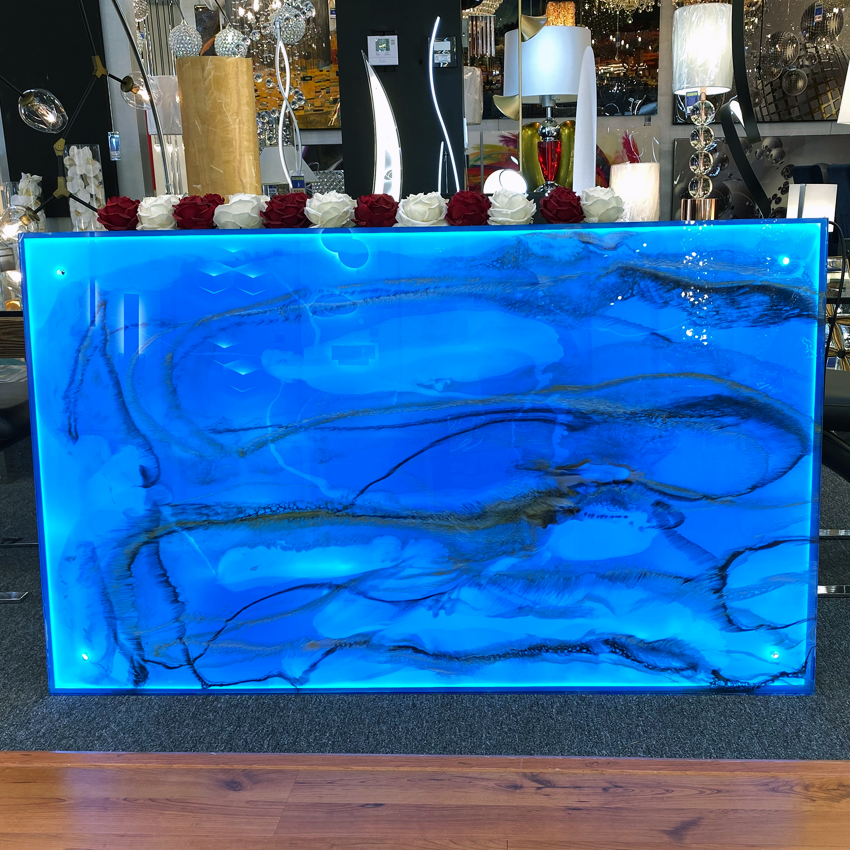

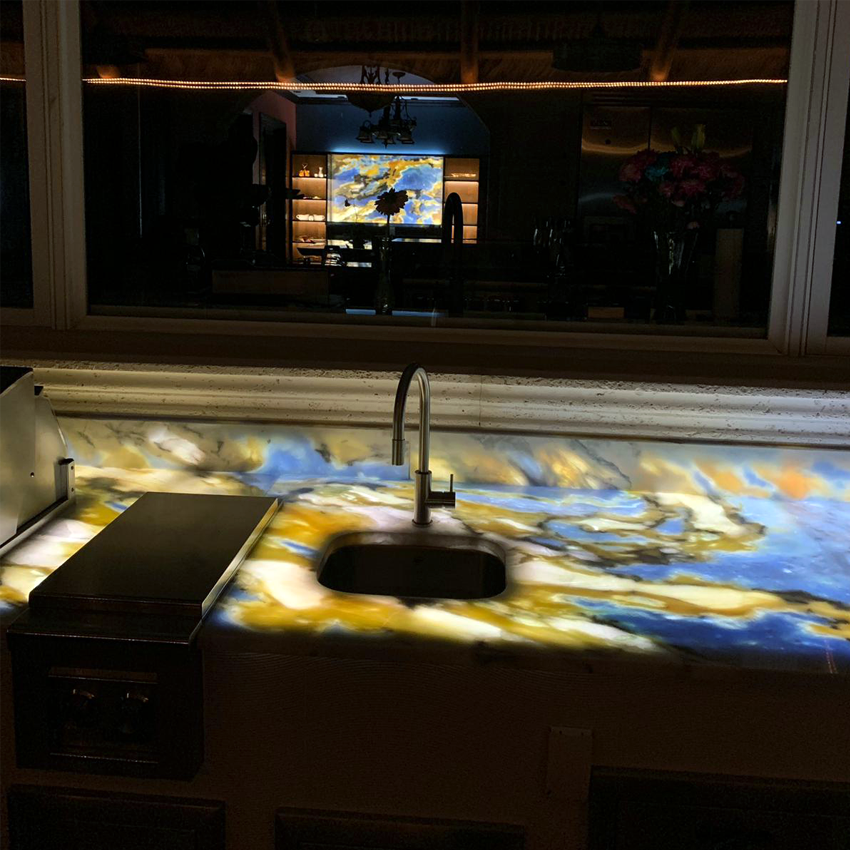

Photo Gallery

Learn more about each project by clicking on the images below

Video Gallery

Learn more about each project by clicking on the videos below

Customizable

Our LED panel lights are a turn-key solution, manufactured to your specs to achieve your desired lighting aesthetic.

Dimmable

Our LED panels are fabricated using only our trusted and verified LED lighting components.

Low Power Consumption

All our products are designed to have a minimum energy consumption

Made in USA

Product 100% built in the USA, with all quality standards

Custom LED Light Panel

The Custom LED Light Panel is the new innovative light source. In other words, it is designed to be ultimately slim, have even illumination, and be customizable to your design. This new DAKOTA innovative technology and design can be applied in all types of markets to backlit led panels for onyx, quartz, translucent stone. For instance, Architecture & Design, Onyx Translucent Stones, Retail, Signage, and Display & Fixture are some of the main ones.

The LED Light Panel DAKOTA is perfect for stone applications. In addition, their ultra-thin design, from ¼” – ¾” thickness makes them accessible in all areas. Besides, they are available in 24VDC systems with a power supply included. Finally, they also come with DC connectors and adaptors and they are available in a variety of color temperatures: 3000 K, 4500 K, 6500 K, RGB, RGBW, CCT 3000K-6000K and custom colors.

Benefits

  • Low Profile Design
  • Dimmable.
  • Low Power Consumption.
  • Up to 70,000 hours of lifespan.
  • 3 Years of Warranty.
  • Made in USA.
  • Easy Installation and Low Maintenance.
  • Custom Lengths and Unique Color Temperatures Available.

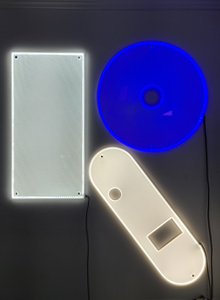

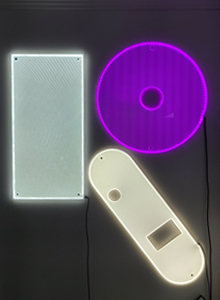

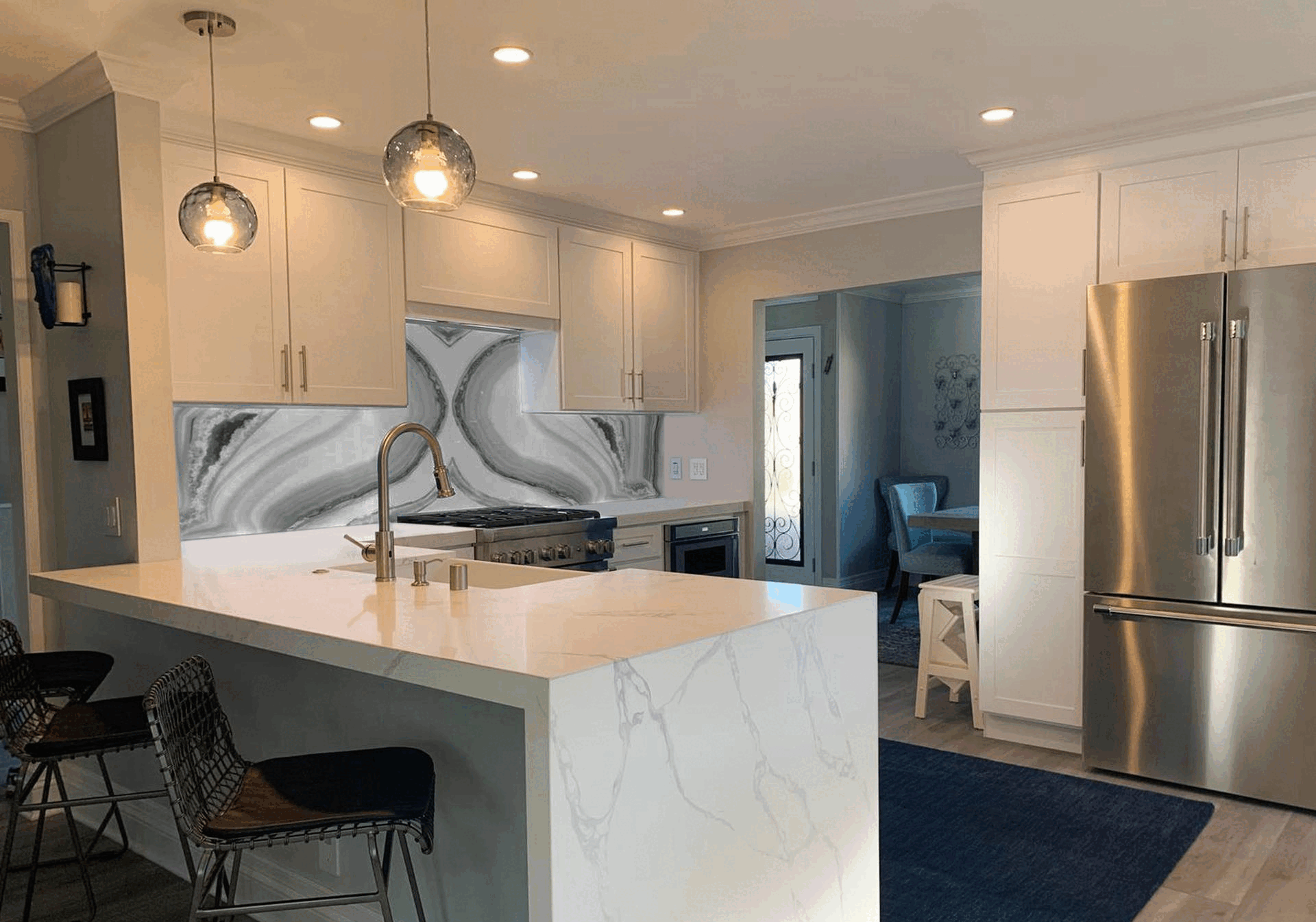

The Dakota LED Light Panel was specifically designed to backlit stone and illuminate any translucent material. Therefore, they produce bright, uniform backlit and vibrant, sustainable architectural features or illuminated graphics and signage. Moreover, with multiple fully dimmable output level options and the ability to embed LEDs along 1, 2, 3 or all 4 edges of the acrylic. Our panels are fabricated to the ideal light level required for your backlit application.

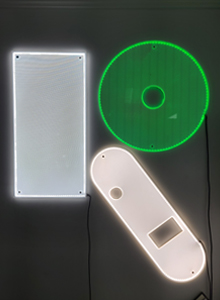

Every Dakota LED Light Panel is custom manufactured to the dimensions/shape, light level, and Kelvin temperature or RGB output of each client’s specific project requirements. In other words, a meticulous fabrication process coupled with stringent quality control measures ensures that the panels arrive as expected, and outperform your expectations. In addition, our knowledgeable design consultants and technicians offer assistance throughout your project to meet your functional requirements and achieve your aesthetic lighting objective.

IMPORTANT: REQUIRED DIMMING OPTIONS

LED Light Panel Request a Quote

Choose your language EnglishPortugueseSpanish




Technical specs

Dimensions6″ – 96″ (152.4 mm to 2438.4 mm) (Custom lengths available)
ColorsWarm White, Neutral White, Cool White, RGB, RGBW
Wattage / foot3 or 4.5 Watts
Lumens / footT2 (259) and T4 (447)
Input Voltage24VDC
View Angle120 degrees
LED Spacing0.5″ (12.7) center to center
LED TypeT2 (3528), T4 (2835)
IP RatingIndoor Standard IP20 – Outdoor IP67 EPX Series
CRI90
LensClear acrylic, semi-diffused or diffused lens standard
Lens TypeFlat
HousingAnodized clear aluminum extrusion (Custom colors available (gold, black, …))
MountingStandard closet rod munting brackets
Leads2 foot 18g 2 cond (custom wire lengths available)

Colors



2D View

Documents



Custom LED Light Panel

The Custom LED Light Panel is the new innovative light source. In other words, it is designed to be ultimately slim, have even illumination, and be customizable to your design. This new DAKOTA innovative technology and design can be applied in all types of markets to backlit led panels for onyx, quartz, translucent stone. For instance, Architecture & Design, Onyx Translucent Stones, Retail, Signage, and Display & Fixture are some of the main ones.

The LED Light Panel DAKOTA is perfect for stone applications. In addition, their ultra-thin design, from ¼” – ¾” thickness makes them accessible in all areas. Besides, they are available in 24VDC systems with a power supply included. Finally, they also come with DC connectors and adaptors and they are available in a variety of color temperatures: 3000 K, 4500 K, 6500 K, RGB, RGBW, CCT 3000K-6000K and custom colors.

Benefits

  • Low Profile Design
  • Dimmable.
  • Low Power Consumption.
  • Up to 70,000 hours of lifespan.
  • 3 Years of Warranty.
  • Made in USA.
  • Easy Installation and Low Maintenance.
  • Custom Lengths and Unique Color Temperatures Available.

The Dakota LED Light Panel was specifically designed to backlit stone and illuminate any translucent material. Therefore, they produce bright, uniform backlit and vibrant, sustainable architectural features or illuminated graphics and signage. Moreover, with multiple fully dimmable output level options and the ability to embed LEDs along 1, 2, 3 or all 4 edges of the acrylic. Our panels are fabricated to the ideal light level required for your backlit application.

Every Dakota LED Light Panel is custom manufactured to the dimensions/shape, light level, and Kelvin temperature or RGB output of each client’s specific project requirements. In other words, a meticulous fabrication process coupled with stringent quality control measures ensures that the panels arrive as expected, and outperform your expectations. In addition, our knowledgeable design consultants and technicians offer assistance throughout your project to meet your functional requirements and achieve your aesthetic lighting objective.

IMPORTANT: REQUIRED DIMMING OPTIONS

Optional Accessories

Power Supplies

POWER SUPPLY UNIVERSAL 120W 24V
Power Supply Universal 120W 24V
$82.00
The LUMIRON Power Supply Universal 120W 24V is a transformer...
POWER SUPPLY UNIVERSAL 120W 12V
Power Supply Universal 120W 12V
$82.00
The LUMIRON Power Supply Universal 120W 12V is a transformer...
POWER SUPPLY UNIVERSAL 90W 24V
Power Supply Universal 90W 24V
$66.00
The LUMIRON Power Supply Universal 90W 24V is a transformer...
POWER SUPPLY UNIVERSAL 90W 12V
Power Supply Universal 90W 12V
$66.00
The LUMIRON Power Supply Universal 90W 12V is a transformer...
