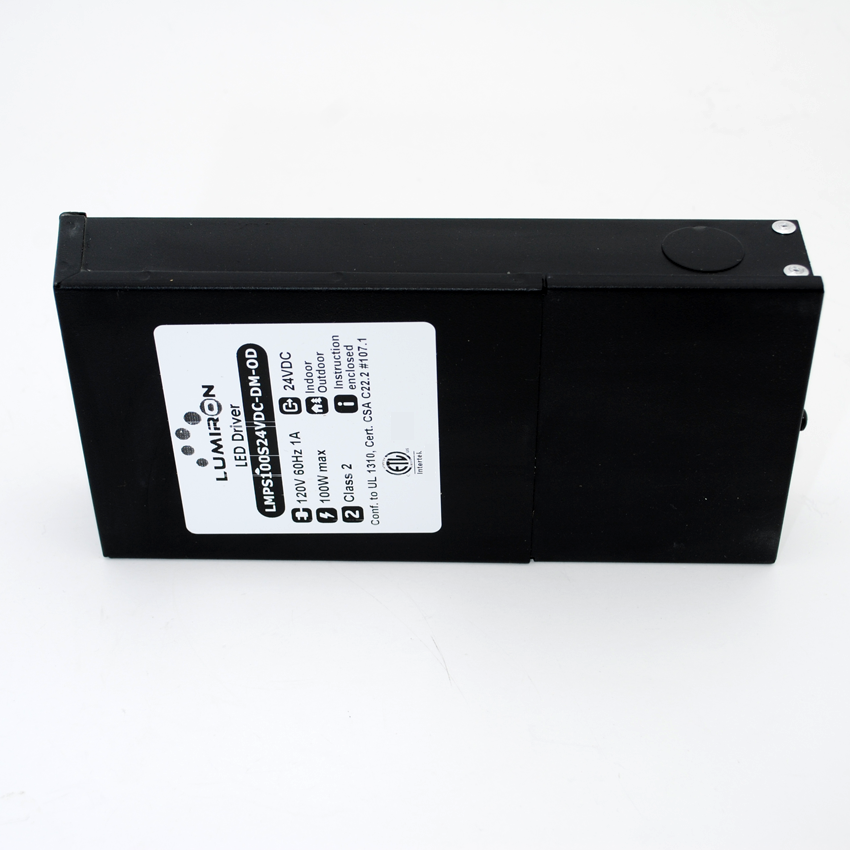

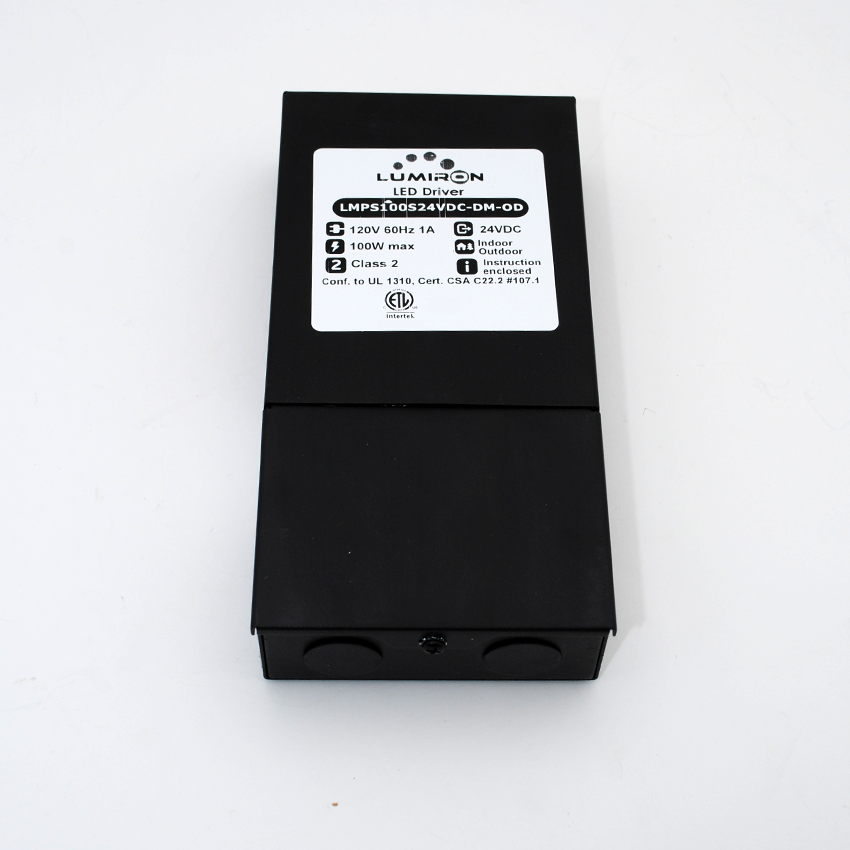

Dimmable Power Supply Magnetic MLV 100W 24V

SKU: PSD-100W-24V Category:
Loading...

Description

Transformer

  1. Power Supply Magnetic MLV 100W 24V with any LV magnetic dimmer as long as you cover dimmer’s min load.
  2. Temperature class B(130°C).
  3. Input leads are 18AWG 600V.
  4. Output leads are 18AWG 300V.
  5. Leads max. operational temperature is 105°C.
  6. Thermal self reset primary breaker 200A.
  7. Thermal self reset secondary breaker 400A.

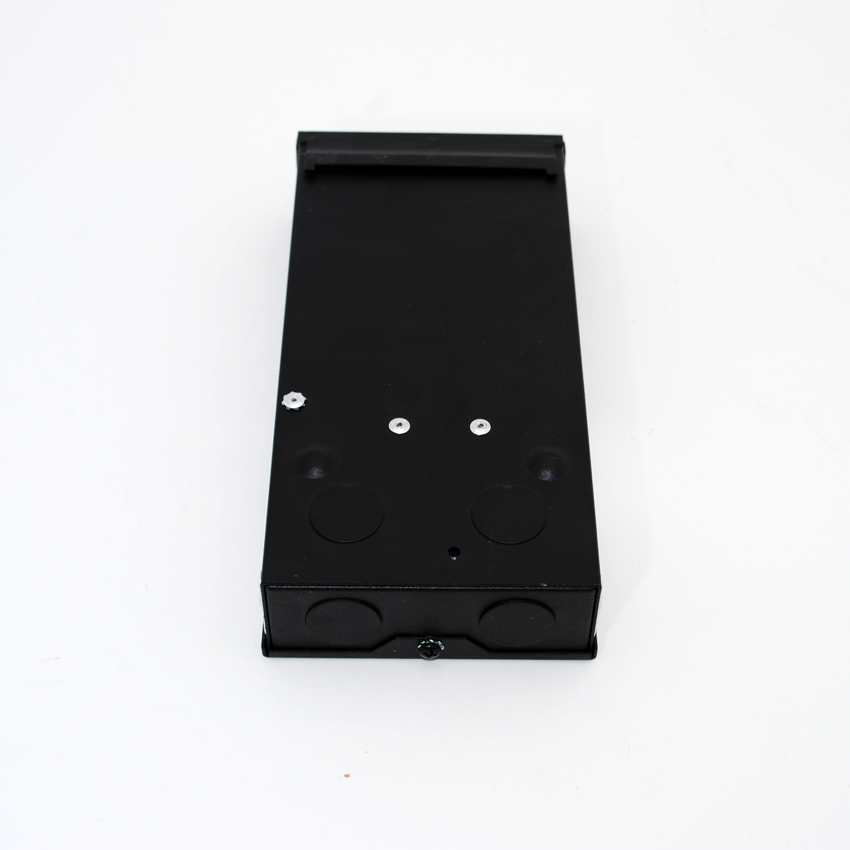

Housing

  1. The actual transformer for Power Supply Magnetic MLV 100W 24V is encapsulated in the enclosure.
  2. The enclosure is Black Powder Coated Steel, NEMA 3R rated.
  3. Wiring compartment has 5 knockouts sizes for 3/8 inch screw cable connectors.
  4. Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded.
  5. Dimensions (inch): H = 813, W = 393, D = 159.
  6. Weight (LBs): 4.



Electrical Parameters

  1. Input Voltage: 120V 60Hz.
  2. Max. input current at full load: 1.1A.
  3. Output voltage without load: 23.6VDC.
  4. Output voltage fully loaded: 21.5VDC.
  5. Max. Total Wattage: 100W.
  6. Max. Output Current: 4A.
  7. Efficiency: 85%.

Product Specs

Weight 4 lbs ( 1.81 kg )
Dimensions 1.59 x 3.93 x 8.13 in ( 40.39 x 99.82 x 206.5 mm )
Amperage

Brand

Input Voltage

Output Voltage

Wattage
