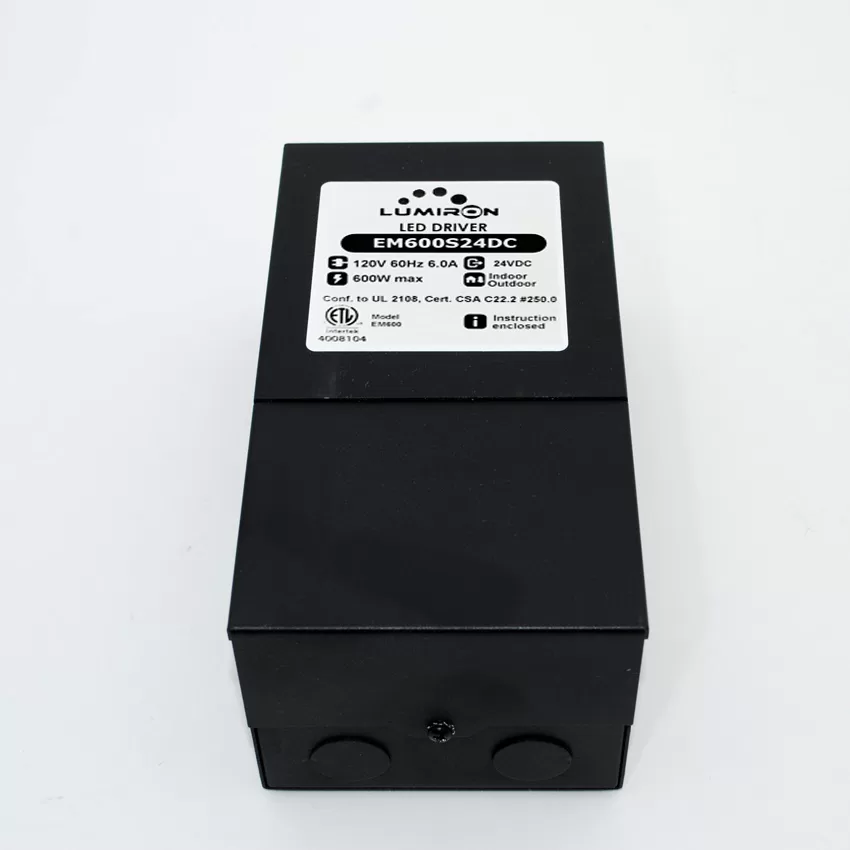

Dimmable Power Supply Magnetic MLV 600W 24V

SKU: PSD-600W-24V Category:
Loading...

Description

Transformer

  1. POWER SUPPLY MAGNETIC MLV 600W 24V with any LV magnetic dimmer as long as you cover dimmer’s min load.
  2. Temperature class B(130°C).
  3. Two section bobbin completely separated primary and secondary windings.
  4. Input leads are 18AWG 600V.
  5. Output leads are 12AWG 300V.
  6. Leads max. operational temperature is 105°C.
  7. Thermal manually reset primary breaker 5A.
  8. Thermal manually reset secondary breaker 20A.



Housing

  1. The actual POWER SUPPLY MAGNETIC MLV 600W 24V transformer 600W is encapsulated in the enclosure.
  2. The enclosure is Black Powder Coated Steel, NEMA 3R rated.
  3. Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable connectors.
  4. Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded.
  5. Dimensions (inch): H = 8, W = 4.15, D = 3.41.
  6. Weight (LBs): 9



Electrical Parameters

  1. Input Voltage: 120V 60Hz.
  2. Max. input current at full load: 3A.
  3. Output voltage without load: 24.8VDC.
  4. Output voltage fully loaded: 23.5VDC.
  5. Max. Total Wattage: 600W.
  6. Max. Output Current: 25A.
  7. Efficiency: 93%

Product Specs

Weight 5 lbs ( 2.27 kg )
Input Voltage

Wattage

Amperage

Output Voltage
