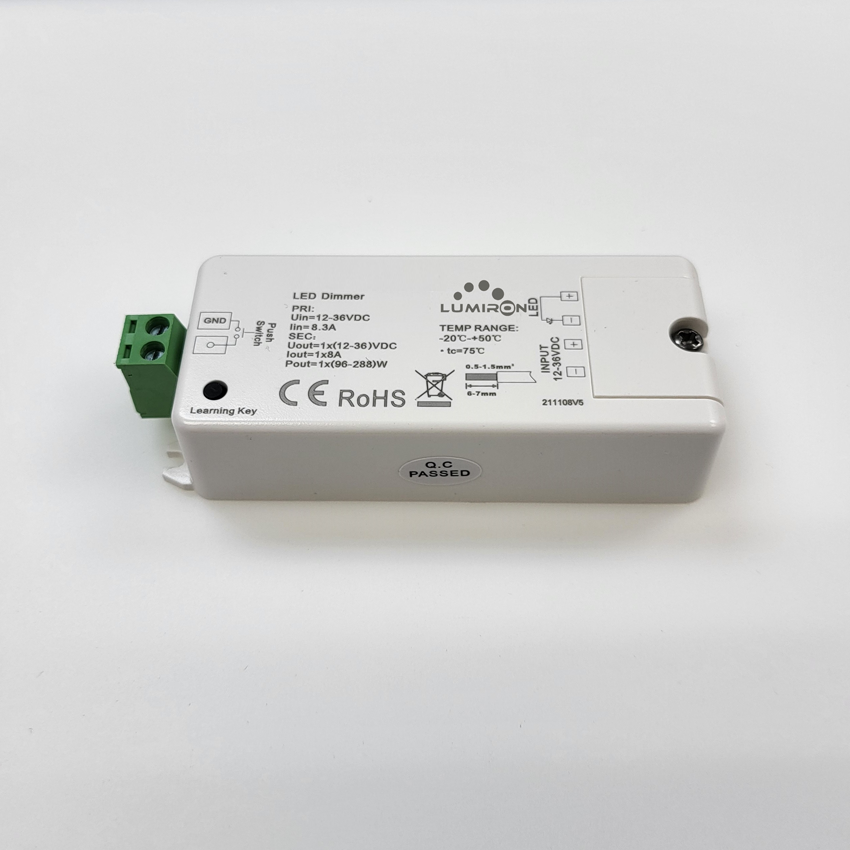

DMR 3010 PB 1 Zone Wired Wireless Dimmer Controller

Lumiron’s DMR 3010 PB 1 Zone Wired Wireless Dimmer Controller is the perfect companion for multiple Lumiron’s wireless LED Dimmers and is also great for adding extra zones for additional areas or projects.

Quantity discounts
1 2-5 6-15 16+
$73.00 $69.35 $67.89 $65.70
SKU: DMR-3010-PB-1-Zone-Wired-Wireless-Dimmer-Controller Category:
Loading...

Description

DMR 3010 PB 1 Zone Wired Wireless Dimmer Controller

Lumiron’s DMR 3010 PB 1 Zone Wired Wireless Dimmer Controller is the perfect companion for multiple Lumiron’s wireless LED Dimmers and is also great for adding extra zones for additional areas or projects. Designed for single color LED fixtures and single zone application, this small yet powerful unit has 8 amps per channel delivering an outstanding max power of 192W at 24V DC.

The DMR 3010 PB 1 Zone Wired Wireless Dimmer Controller includes an array of innovative features such as a memory function which will remember your last setting in case of a power outage, soft ON/OFF for smooth light illumination as well as smooth dimming levels from 0 – 100%, flicker-free lighting, and the Learning Key button which allows for seamless pairing with your wireless LED Remote.

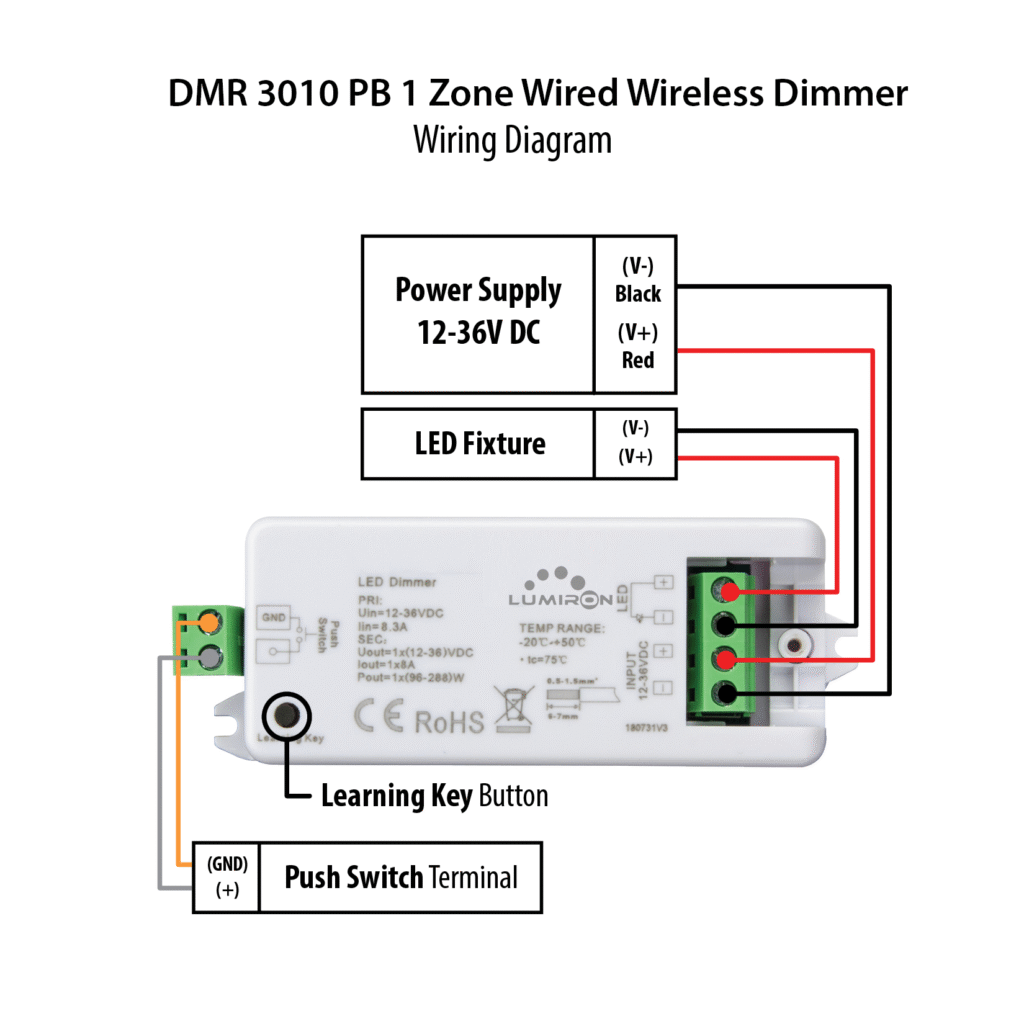

The addition of the Push-Switch Terminal is added for momentary switch applications and incorporates a detachable terminal for easy wire-in installations to the unit.

Technical details

  • 192W@24VDC, 96W@12VDC
  • 12-36V DC operation
  • 8A per Channel
  • Dimming from 0-100%
  • Push-Switch Terminal for Momentary Push-Switch Applications

Main Functions

  • Low-Profile – Lightweight LED Controller
  • Great for Adding Extra Zones for Single Color LED Fixtures
  • Perfect Companion for Various Solid Apollo Dimmers
  • Detachable Push-Switch Terminal for Easy Wiring Installation
  • Soft On/Off for Smooth Light Illumination
  • Learning Key Button Ensures Quick and Seamless Pairing
  • Memory Function – Remembers Last Setting even if Power Goes Off

Warning: You can only control one zone with this controller. If you need to control multiple zones you will need one controller for each zone.

Additional information

Weight 0.25 lbs
Amperage

Brand

Input Voltage

IP Rating

Output Type

Output Channel

Wattage
