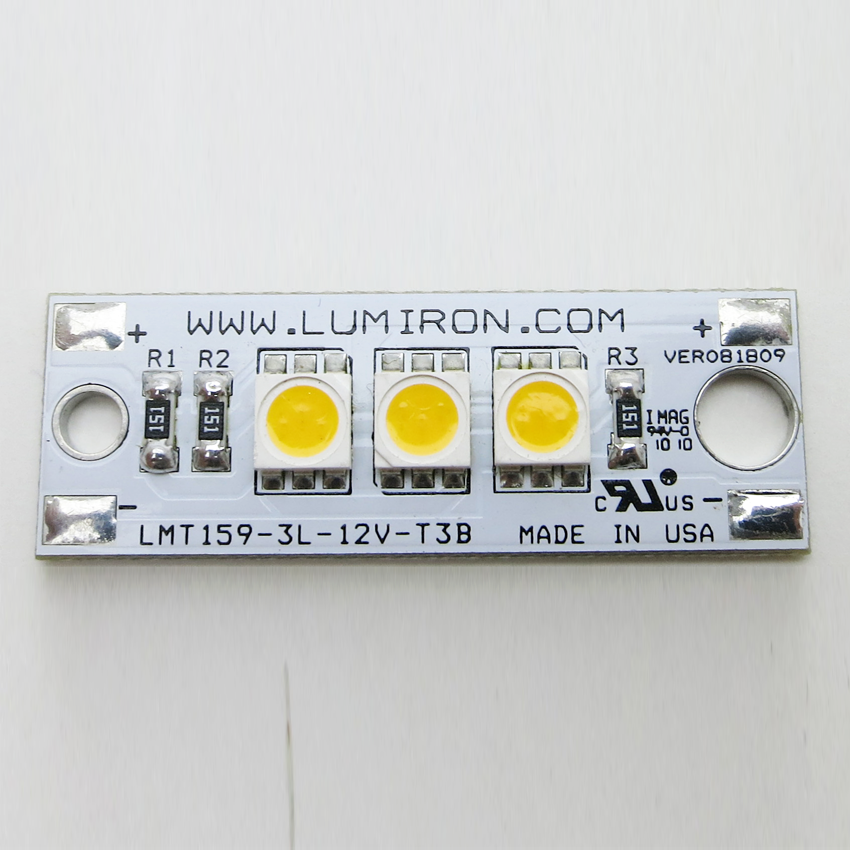

LUMOS LMT 159 3L T3

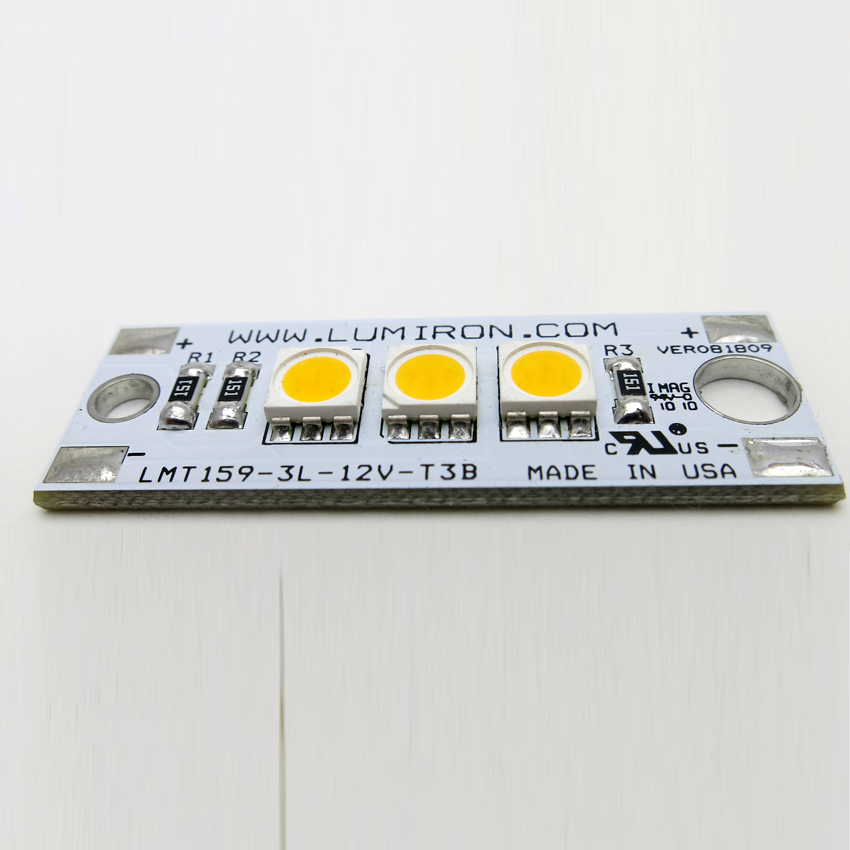

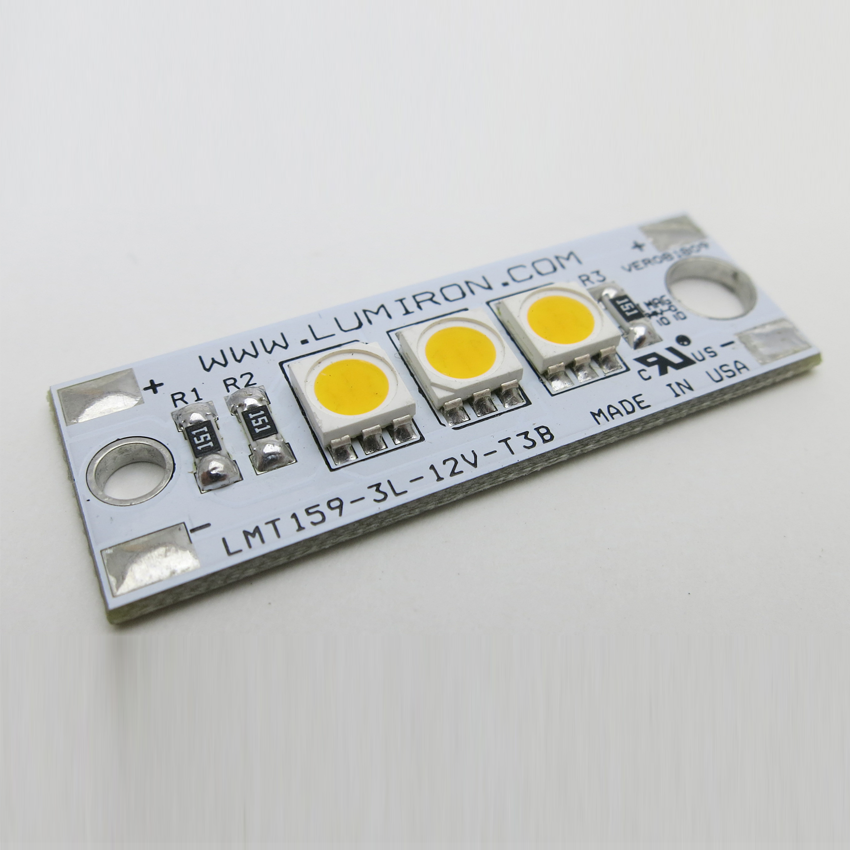

LUMOS LMT 159 3L T3 lumos-lmt-159-1 lumos-lmt-159-2

LUMOS LMT 159 3L T3

Category:

Product Description

The LUMIRON LUMOS 159-T3-SERIES is a high-grade, 1 5/8” by 9/16”, rectangular module 8” by 9/16”, rectangular module designed to produce outstanding dimmable lighting solutions for MARINE, ARCHITECTURAL AS WELL AS NEW FIXTURES FOR ALL APPLICATIONS. It is a great retrofit on small marine courtesy lights or any small linear fixture for commercial, domestic or designer application.  It is easy to install in new or, to retrofit existing fixtures. THE LUMOS 159-T3-SERIES IS AVAILABLE IN 12VDC ONLY AND IS DIMMABLE. The LUMIRON LUMOS 159-T3-SERIES is an innovative solid state lighting solution for commercial/industrial and marine application. This LED has excellent lighting applications in multiple whites or colors; while reducing the impact on the environment, it offers you a The LUMIRON LUMOS 159-T3-SERIES is an innovative solid state lighting solution for commercial/industrial and marine application. This LED has excellent lighting applications in multiple whites or colors; while reducing the impact on the environment, it offers you a solution to many of your lighting needs. The LUMOS 159 MODULE has a considerably low power usage using 12VDC AND .75 WATTS per module. It has multiple marine applications with exceptional quality of illumination. LEDs have lower heat emission and no UV or Mercury. That makes it a cost effective, environmentally conscious product with a lifetime of about 50,000 hours of use. LUMIRON’S LUMOS 159 is a solid state lighting solution that has gone through our rigorous in-house testing and comes with a 3 year warranty.

Additional Information

Dimensions

1.62 x 0.56 Inch Module

Colors

Warm White / Neutral White / Cool White / Red / Amber / Green / Blue

CRI

90

Leds

3 LED Per Module

LED Type

T3

Input Voltage

12 VDC

View Angle

120

Wattage

0.75 Per Module

Mounting

Double Side Adhesive Standard (Optional Anodized Aluminum Housing Available)

Leads

4 Inch 18G Cable Between Each Module (Custom Wire Lengths Available)

PCB Part Number

LMT 159- 3L- 12V- T3B

Security Code:
security code
Please enter the security code:

Send Request

Benefits

  • Linear LED Module for Cove, Accent & Channel Applications
  • Dimmable.
  • Low Power Consumption.
  • Easy Installation and Low Maintenance.
  • Good For Retrofit Small Courtesy Light Fixtures.
  • Long Lasting 50 000 hours.
  • Three LEDS 0.75W Module Available in Multiple Color Temperatures.



dimmable-logo-1 flag-1 ul-1

Range of Colors

untitled-1

Download PDF File

pdf-download-catalog
