POWER SUPPLY ELECTRONIC 320W 12V
POWER SUPPLY ELECTRONIC 320W 12V

POWER SUPPLY ELECTRONIC 320W 12V

Compare
SKU: PSE-320W-12V Category:

Description

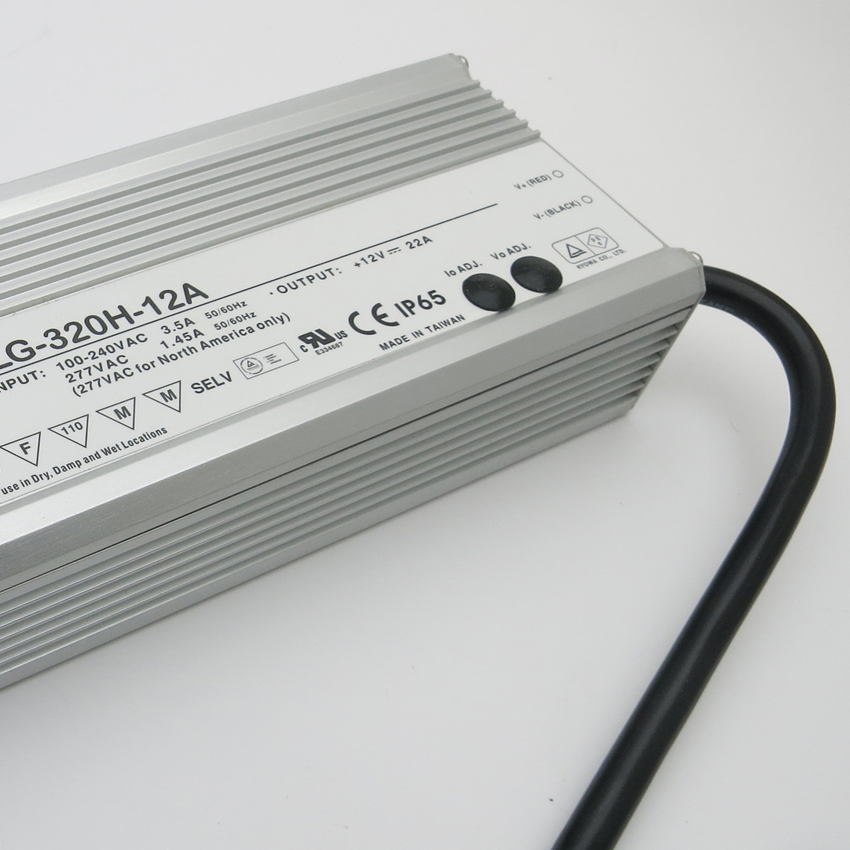

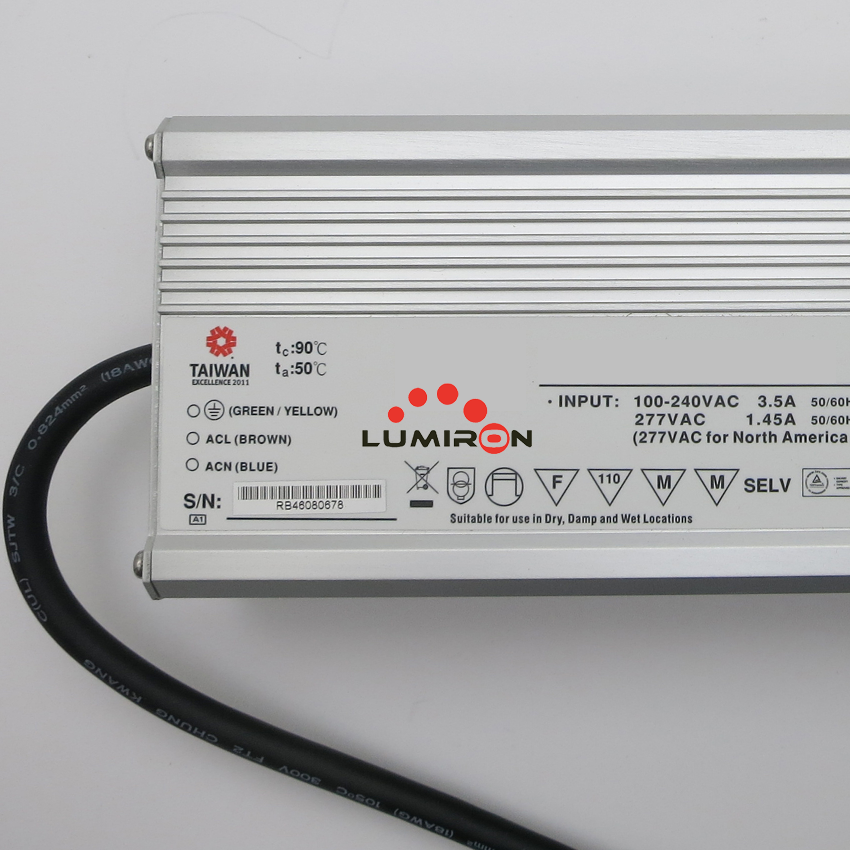

POWER SUPPLY ELECTRONIC 320W 12V

  1. Part Number: 7000PS – 4306D (Dimmable)
  2. Model: LMPG – 320W – 12VDC – D
  3. Maximum Input Current: 3.5A
  4. Output Connector Type: Stripped and Tinned
  5. Number of Outputs: 1
  6. Product Type: AC to DC Power Supply
  7. Efficiency: 91% Minimum
  8. Isolation Voltage: 3750V
  9. Operating Temperature-Min: -40c
  10. Operating Temperature-Max: 70c
  11. Length: 9.92″ (252mm)
  12. Width: 3.54″ (90mm)
  13. Height: 1.72″ (43.8mm)
  14. Agency Approvals: UL/CUL/TUV/CB/CE
  15. Type: Auto Switching
  16. Style: Enclosed Primary
  17. Primary Output Voltage: 12VDC
  18. Output Current: 22A
  19. Maximum Output Power: 264W
  20. Input Voltage: 90 to 305VAC
  21. Input Frequency: 47 to 63

Additional information

Input Voltage

Wattage

Amperage

Output Voltage

Output Channel
