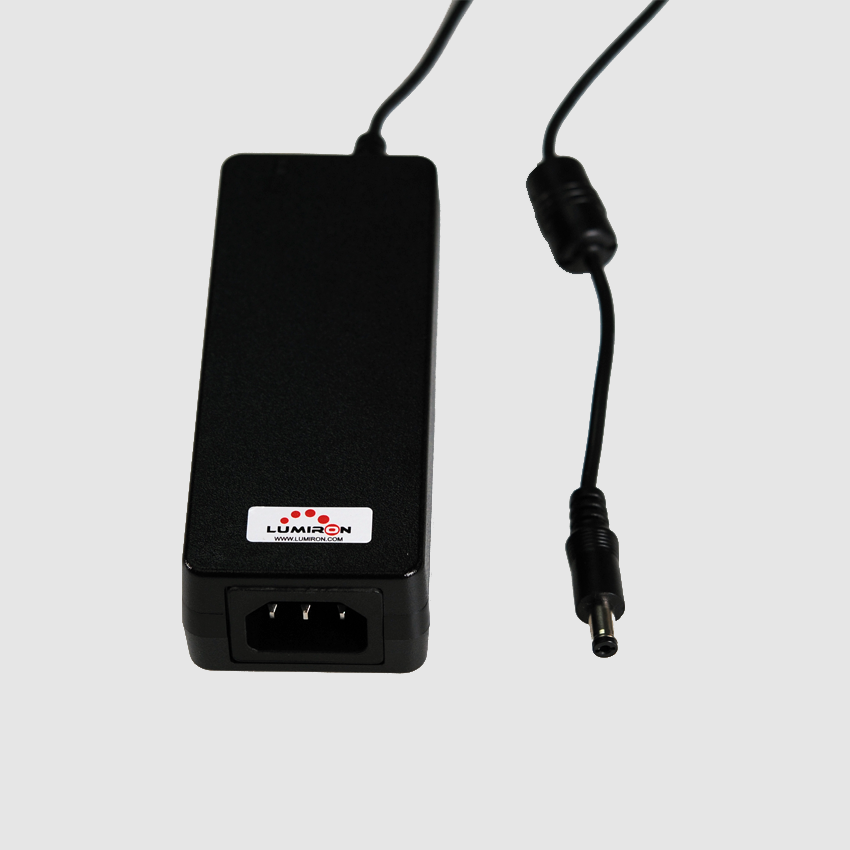

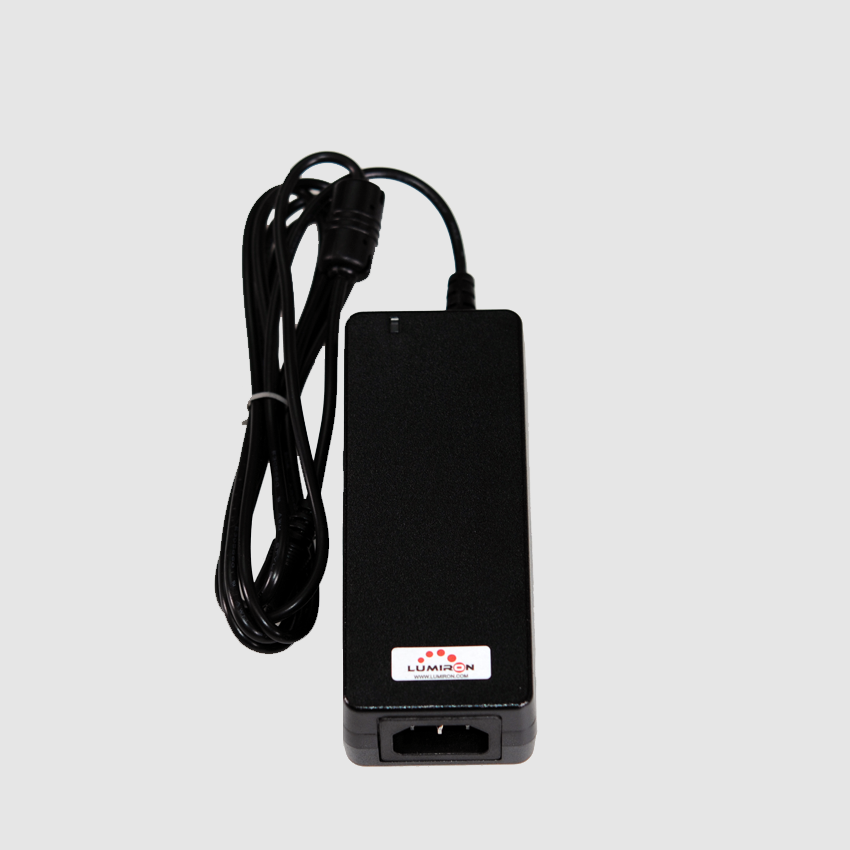

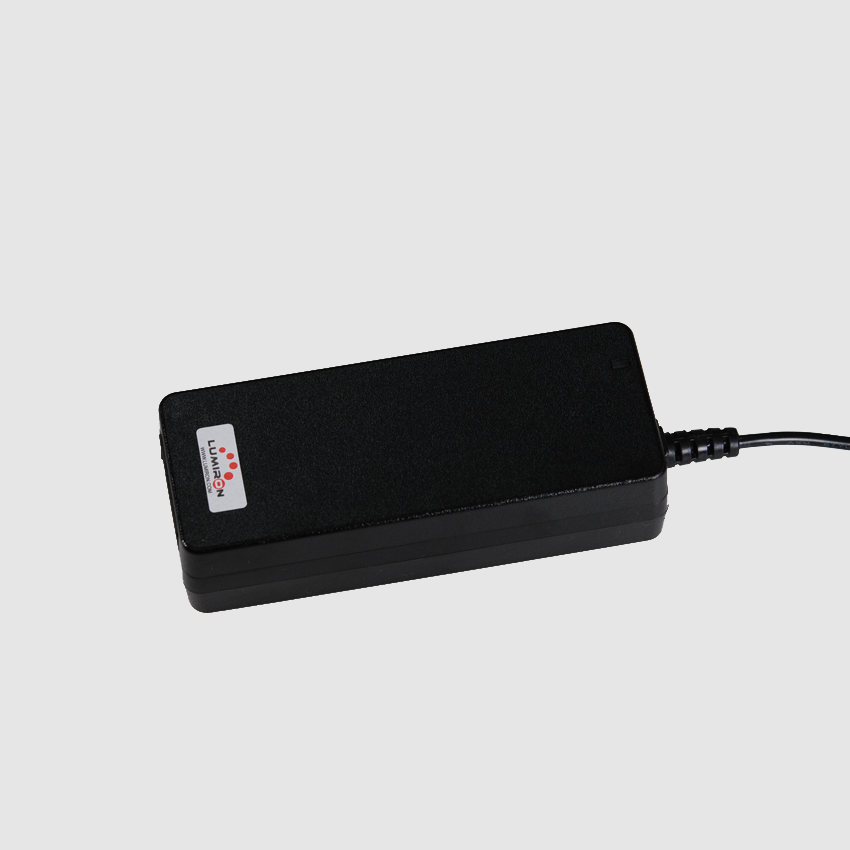

Power Supply Universal 60W 24V

The LUMIRON Power Supply Universal 60W 24V is a transformer module designed to produce outstanding dimmable lighting solutions.

  1. Part Number: 7000 – PS – 4501
  2. Model: LMPS60S24VDC-UN
  3. Input Voltage: 90 to 264 VAC
  4. Input Frequency: 47 to 63 / 1.4A
  5. Output Current: 2.5A
  6. Maximum Output Power: 60 Watts
  7. Output Connector Type: Cylindrical Female
  8. Output Connector Diameters: 2.1mm x 5.5mm
  9. Efficiency: 88%
  10. Type: Switching
  11. Style: Desktop Adapter
  12. Case: Fully enclosed plastic case
  13. Protections: Short circuit / Overload / Over voltage / Over temperature
  14. Size: L 4.9″ x W 1.9″ x H 1.2″ / L ( 12.5cm ) x W ( 4.9cm ) x H ( 3.1cm )
SKU: LMPS60S24VDC-UN Category:
Loading...

Description

Power Supply Universal 60W 24V

The LUMIRON Power Supply Universal 60W 24V is a transformer module designed to produce outstanding dimmable lighting solutions.

  1. Part Number: 7000 – PS – 4501
  2. Model: LMPS60S24VDC-UN
  3. Input Voltage: 90 to 264 VAC
  4. Input Frequency: 47 to 63
  5. Maximum Input Current: 1.4A
  6. Output Current: 2.5A
  7. Maximum Output Power: 60 Watts
  8. Output Connector Type: Cylindrical Female
  9. Output Connector Diameters: 2.1mm x 5.5mm
  10. Efficiency: 88%
  11. Type: Switching
  12. Style: Desktop Adapter
  13. Case: Fully enclosed plastic case
  14. Protections: Short circuit / Overload / Over voltage / Over temperature
  15. Size: L 4.9″ x W 1.9″ x H 1.2″ / L ( 12.5cm ) x W ( 4.9cm ) x H ( 3.1cm )

Product Specs

Weight 1 lbs ( 0.45 kg )
