3 Zones RGB Controller

Quantity discounts
1 2-5 6-15 16+
$32.00 $30.40 $29.76 $28.80
SKU: 9500-ACC250-MOS101 Categories: , ,
Loading...

Description

3 Zones RGB Controller

3 Zones RGB Controller is a simple controller that lets you control up to 3 independent channels with 0-100% power rotary knobs. Thanks to its simplicity you can fine tune the any desired color in a color changing LED strip by incrementing or decreasing the RED, BLUE or Green Colors.

Uses:
– For RGB Led Strip controlling and dimming each color independently
– For solid color LED Strips with 3 independent channels
– For Dynamic White LED strip, controlling color temperature.

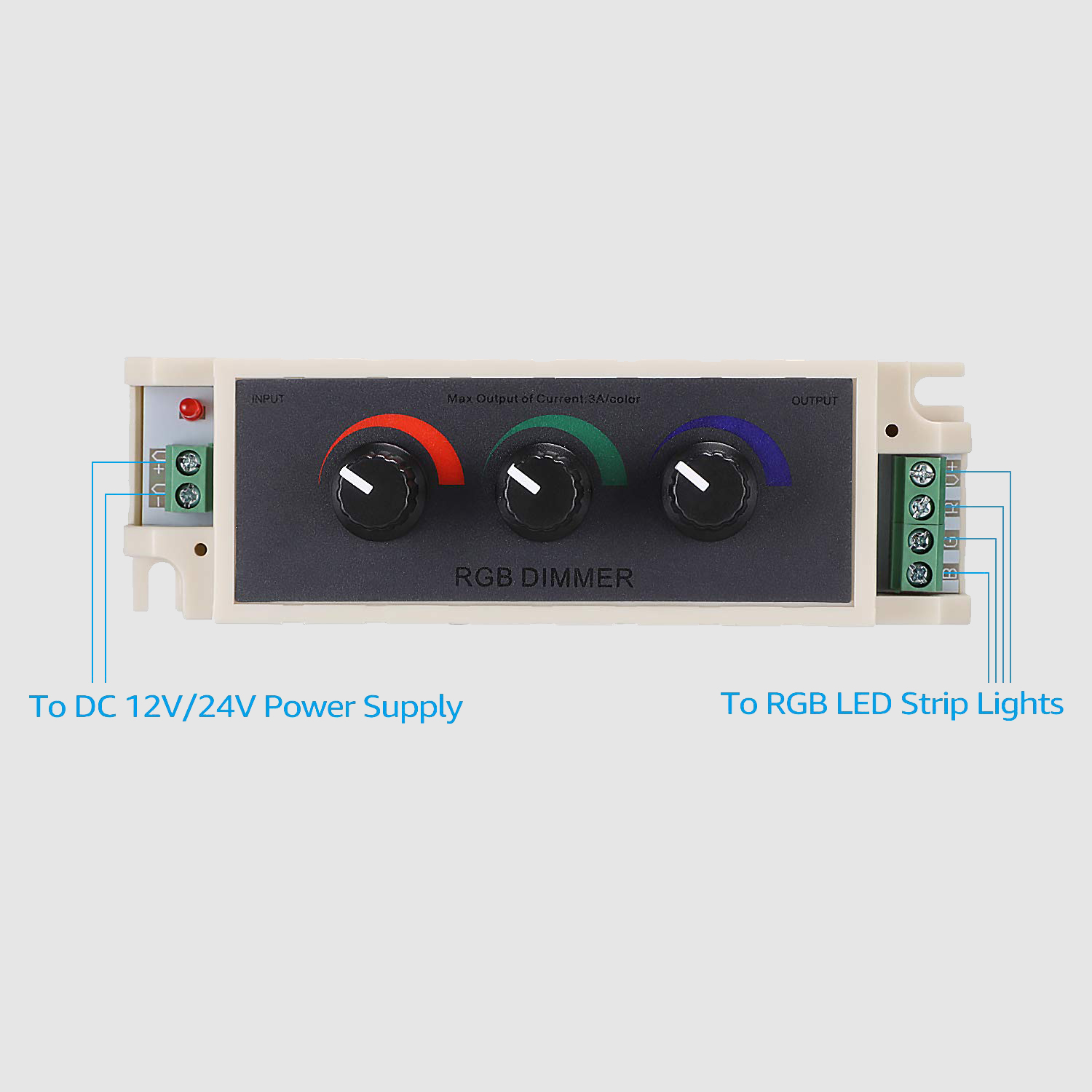

Installation is quite easy, just power up the unit in with 12 to 24V DC power source and connect the 3 outputs to and RGB LED strip or a Solid Color LED strip. Power and outputs cables are easily connected to the unit through screw down connectors, which make 100% secure connections. Perfect to use in LUMIRON’s Dakota LED Panel

Technical Specs:
– 12v DC or 24V DC Operation
– Up to 108W control for 12V DC or 216W for 24V DC Operation
– 3 Independently controlled Knobs for red, Green and Blue



flag-1

Additional information

Weight 0.25 lbs

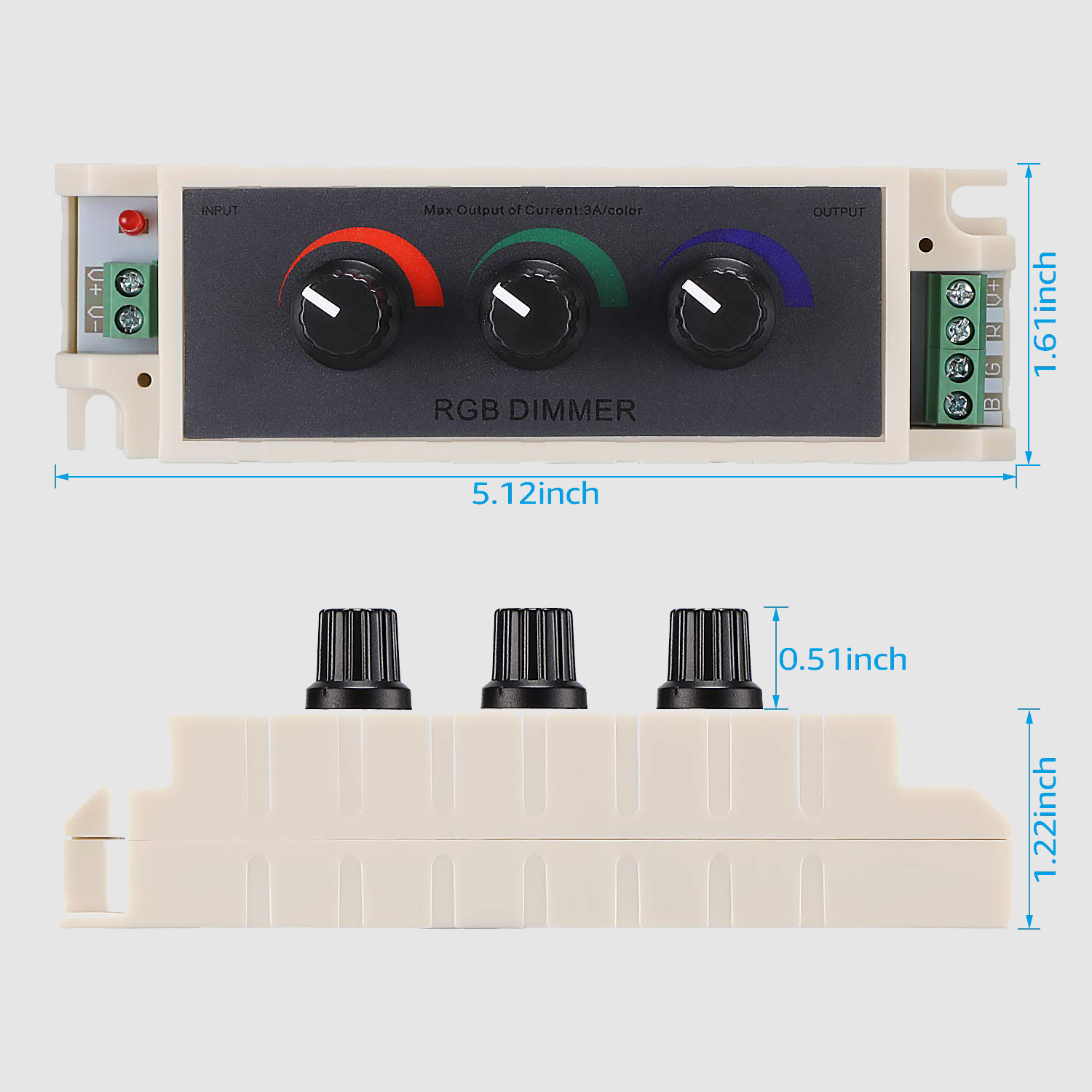

Dimensions 5.12 × 2.62 × 2 in
Dimensions

Item Weight

‎5.6 ounces

Operating Voltage

24.0 volts

Input Voltage

Output Channel

Personal Information

Contact Name(Required)

Company Information

Address(Required)

Quote Request

Payment

Credit Card: We support several card brands, from large global networks like Visa and Mastercard

  • Visa
  • Mastercard
  • American Express
  • Wire Transfer
  • Checks

PayPal: Shop easily online without having to enter your credit card details on the website.

Compliance

UL Listed: E363518

ETL Listed: 103590543ATL
