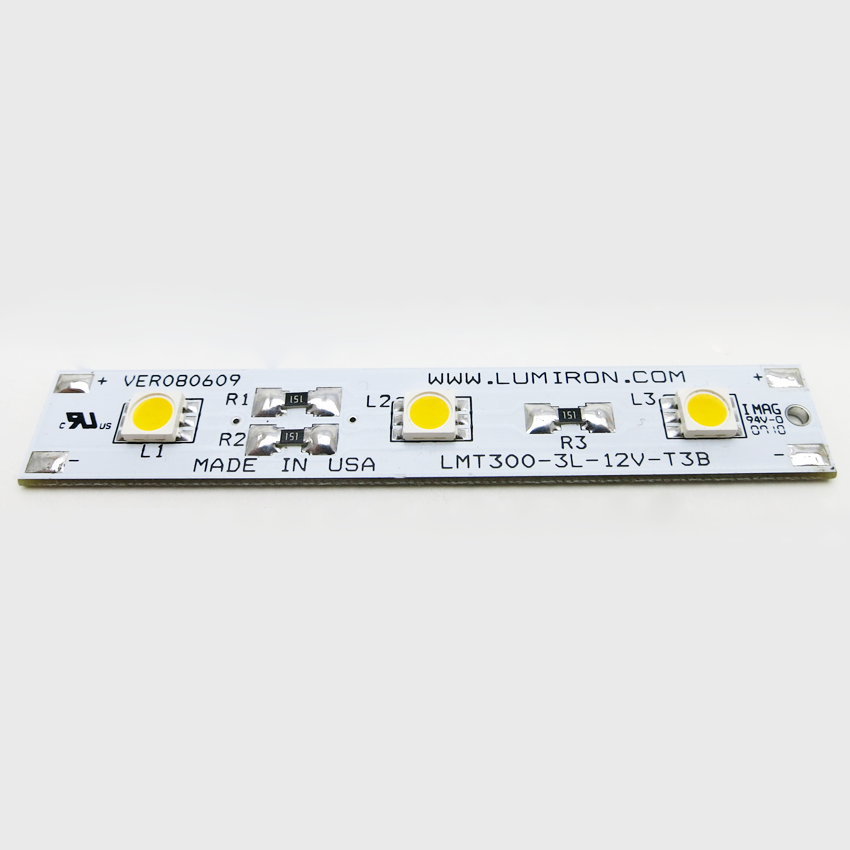

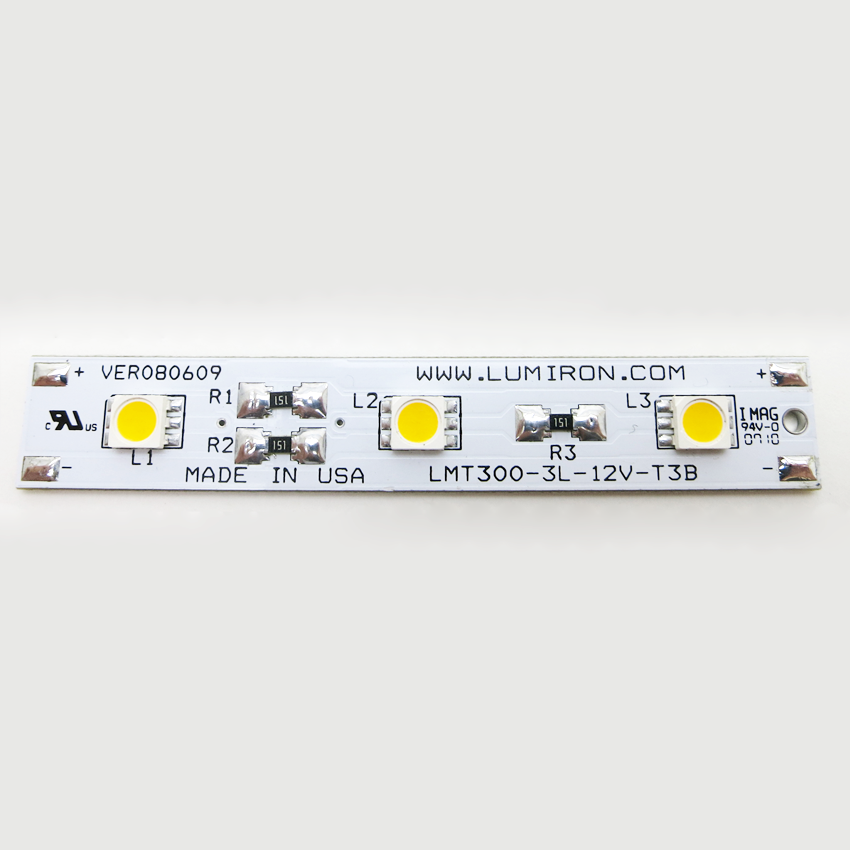

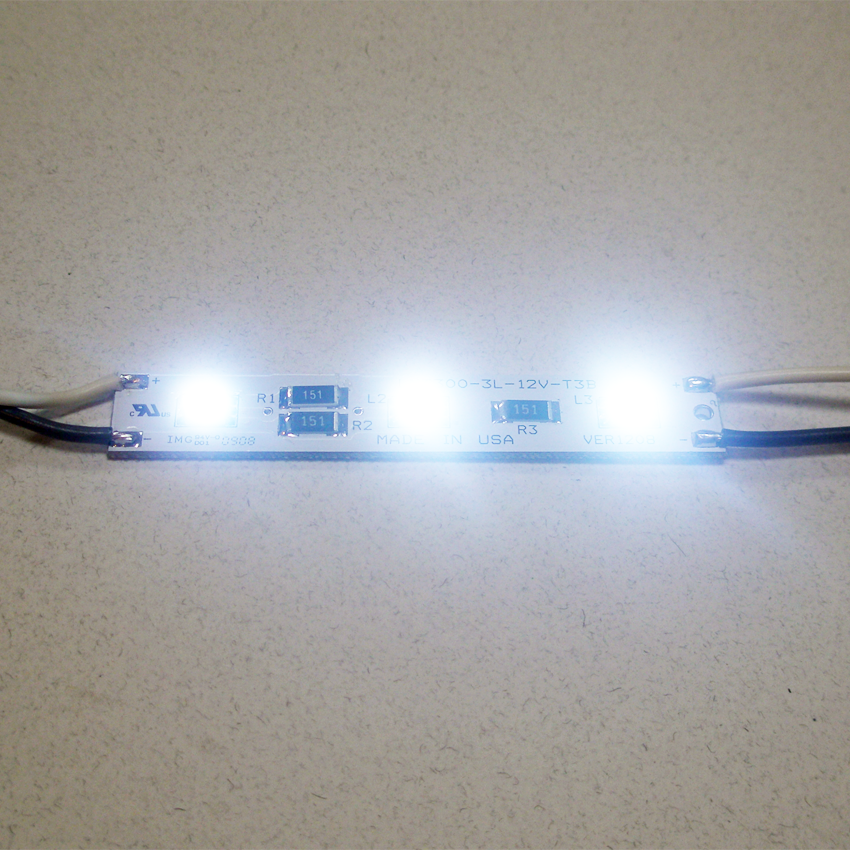

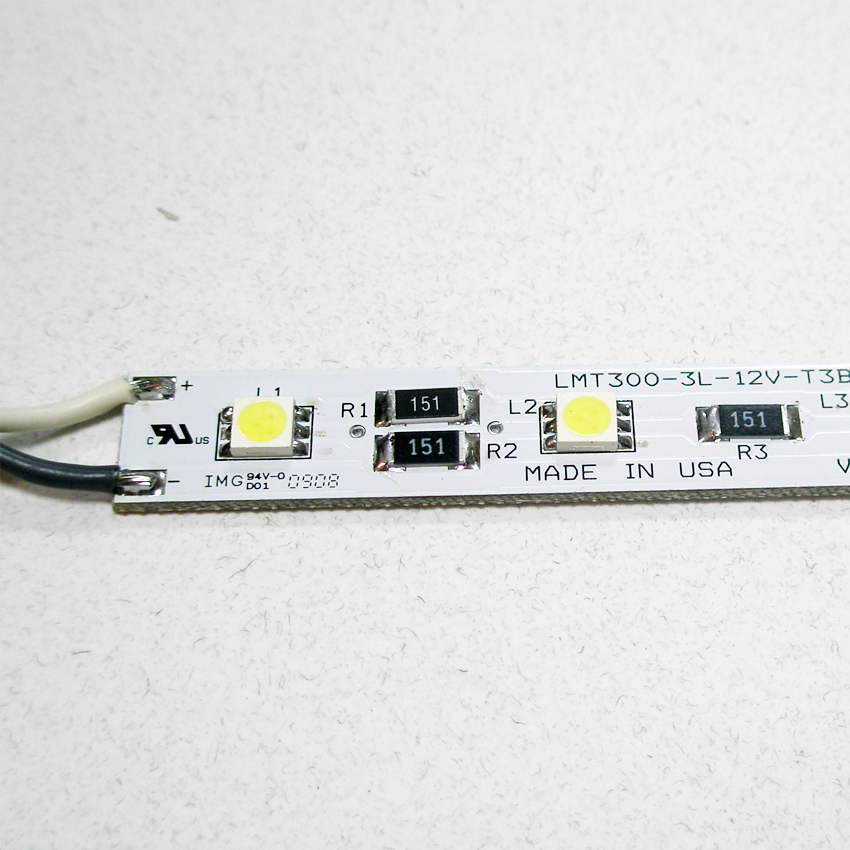

LUMOS LMT 300 3L T3
LUMOS LMT 300 3L T3 lumos-lmt-300-1 lumos-lmt-300-2 lumos-lmt-300-3

LUMOS LMT 300 3L T3

Category:

Product Description

The LUMIRON LUMOS-300-3L-T3 linear module is an LED system for hard to fit cove areas, accent and channel applications. This triple LED module measures 3 x 0.50 Inches, comes standard wired with 2 modules per linear foot and has total power consumption of only 0.6W per module. Available in RGB color changing and a variety colors the LUMOS-300-3L-T3 linear module is a high efficiency, dimmable LED technology that easily mounts to a multitude of surfaces for a long lasting impactful luminosity.

Additional Information

Dimensions

3 x 0.50 Inch Module

Colors

Warm White / Neutral White / Cool White / Red / Amber / Green / Blue

CRI

90

Wattage

0.6W Per Module

Input Voltage

12 VDC

View Angle

120

Leds

3 LED Per Module

LED Type

T3

Mounting

Double Side Adhesive Standard (Optional Anodized Aluminum Housing Available)

Leads

4 Inch 18G Cable Between Each Module (Custom Wire Lengths Available)

PCB Part Number

LMT 300-3RGBL- 12V- T3B

Security Code:
security code
Please enter the security code:

Send Request

Benefits

  • Linear LED Module for Cove, Accent & Channel Applications
  • Dimmable.
  • Low Power Consumption.
  • Easy Installation and Low Maintenance.
  • Good For Retrofit Small Courtesy Light Fixtures.
  • Long Lasting 50 000 hours.
  • Three LEDS 0.75W Module Available in Multiple Color Temperatures.
